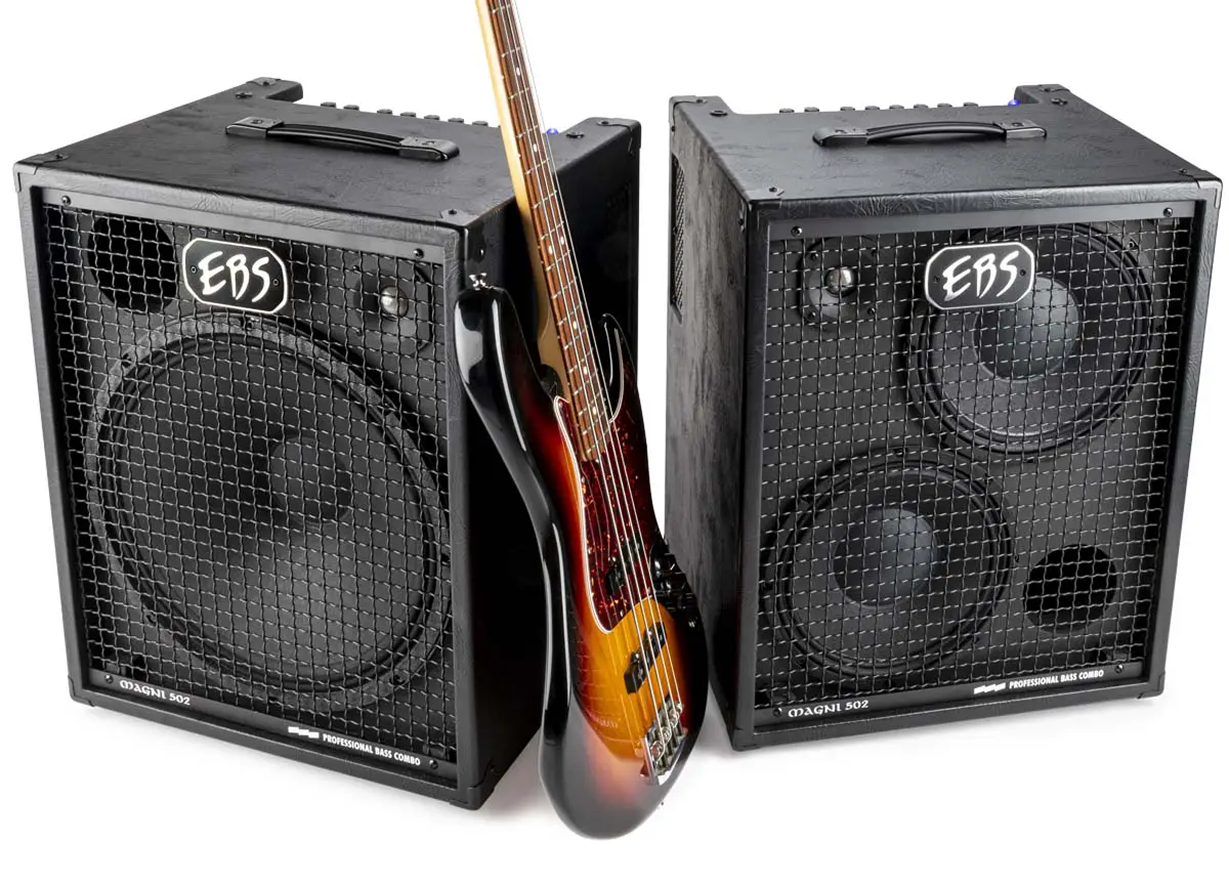

EBS Magni 502 Bass Combo

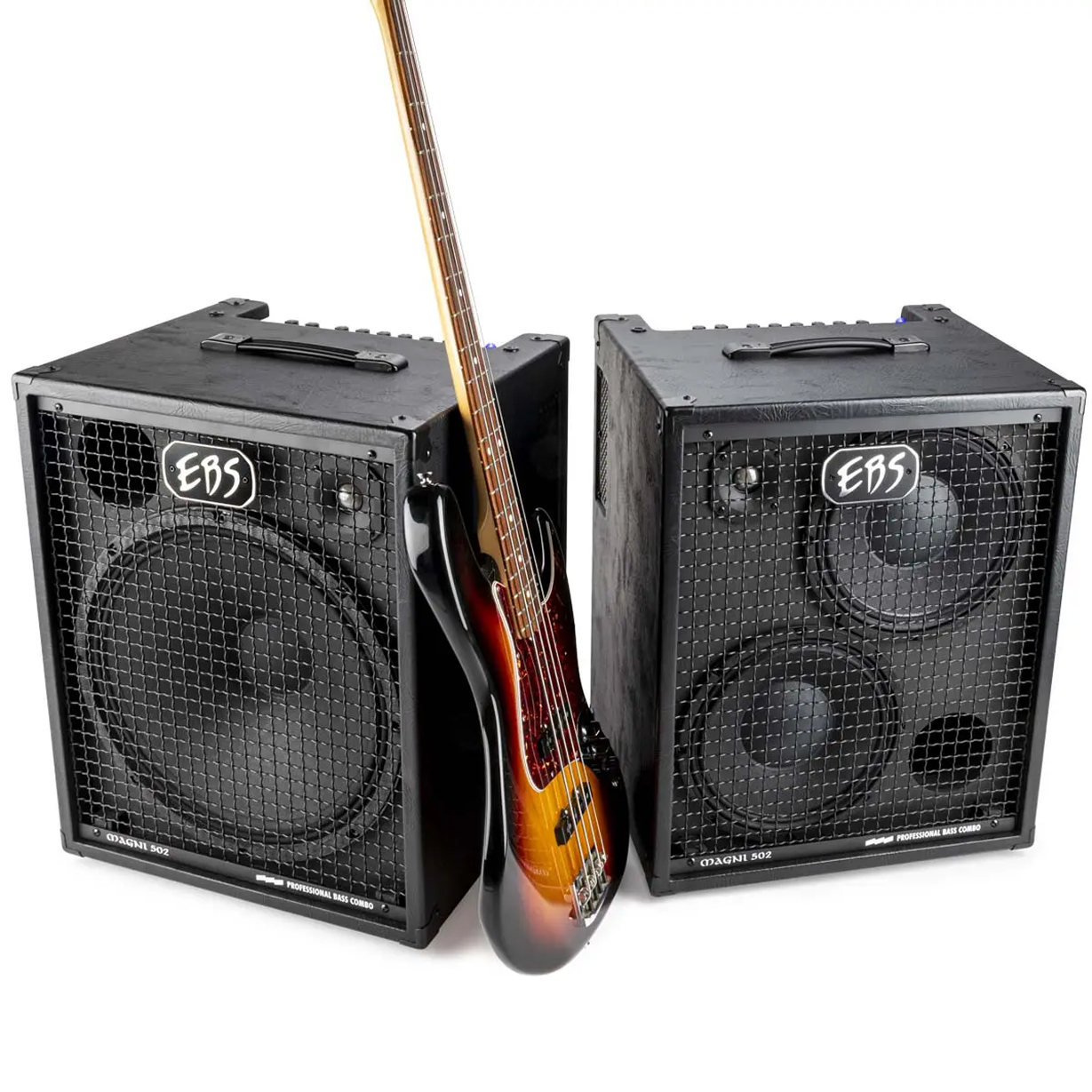

The EBS Magni 502 is a super lightweight bass combo with innovative design that delivers surprisingly big sound from a compact rig. Available in 2×10″ and 1×15″ models, it’s perfect for gigs and rehearsals without compromising tone or power.

Weighing just 15.4–16.5 kg thanks to neodymium speakers, it punches far above its weight. Front and rear porting creates a rich, room-filling sound, while the analog preamp and 500 W power amp offer flexible tone-shaping and expansion options. The Magni 502 also includes a balanced XLR out for seamless live or studio use.

Explore all different models

Features

Weight

15.4 kg (210-model), 16.5 kg (115-model)

Amp Design

Based on award-winning Reidmar amp design

Power Output

500W

Clip Technology

EBS Soft Clip preserves solid bottom at high volume

EQ

4-band EQ with Bright and Notch filters

Compressor

Built-in Compressor/Limiter

Speakers

High-efficiency Neodymium speakers

Cabinet Design

Double-ported cabinet (front and back)

Power-to-Weight Ratio

Superior

Configurations

2×10″ or 1×15″ speaker, both with tweeter

Extension Cabinet

Speakon output for 4 to 8 ohm cab

Voltage

Switchable 120/230V

Balanced Output

XLR with ground lift

Headphones

Dedicated output

Line Out

Yes

Effects Loop

Yes

Accessories

Comes with dust cover

Specs

Input Impedance

1 MΩ // 100 pF

Character Filter

Low: +7 dB @ 40 Hz, Mid: -2 dB @ 800 Hz, High: +3 dB @ 10 kHz

Compressor / Limiter

Gain 0 dB, Max Attenuation 24 dB, Compression Ratio max 3:1, Attack (80%) <10 ms, Release (80%) ~100 ms

Filters


Bass: 12 dB/oct shelving ±18 dB @ 60 Hz
Mid: Bandpass 100–6000 Hz ±12–15 dB gain
Treble: Shelving ±18 dB @ 6 kHz
Bright: Shelving +15/-0 dB @ 10 kHz

Balanced XLR Output

Nominal level -10 dBv, Frequency response 10–20,000 Hz (+0/-3 dB), Connections 1-GND, 2-Hot, 3-Cold, Options Ground Lift, Pre/Post EQ

Effect Loop

Signal level nominal -10 dBv, Gain unity (1:1), Output impedance 100 Ω, Input impedance >50 kΩ // 100 pF

Line Out

Output impedance 100 Ω, Signal level nominal 0 dBv

Phones Out

Recommended impedance 32–200 Ω

Power Amp

500 W output, Minimum external cabinet load 4 Ω, Speakon output jack

Auxiliary Output

Max 500 W power, Mains protection T2.5A fuse (230 V), T5A fuse (100/120 V)

Cabinet Details

Magni 502 – 210

2 × 10″ Neodymium speakers + tweeter, Frequency response 45 Hz – 20 kHz, Size 56 × 44 × 36.5 cm (22 × 17.3 × 14.4 in), Weight 15.4 kg (33.95 lbs), Dust cover included

Magni 502 – 115

1 × 15″ Neodymium speaker + tweeter, Frequency response 30 Hz – 20 kHz, Size 56 × 44 × 36.5 cm (22 × 17.3 × 14.4 in), Weight 16.5 kg (36.37 lbs), Dust cover included

Product variants

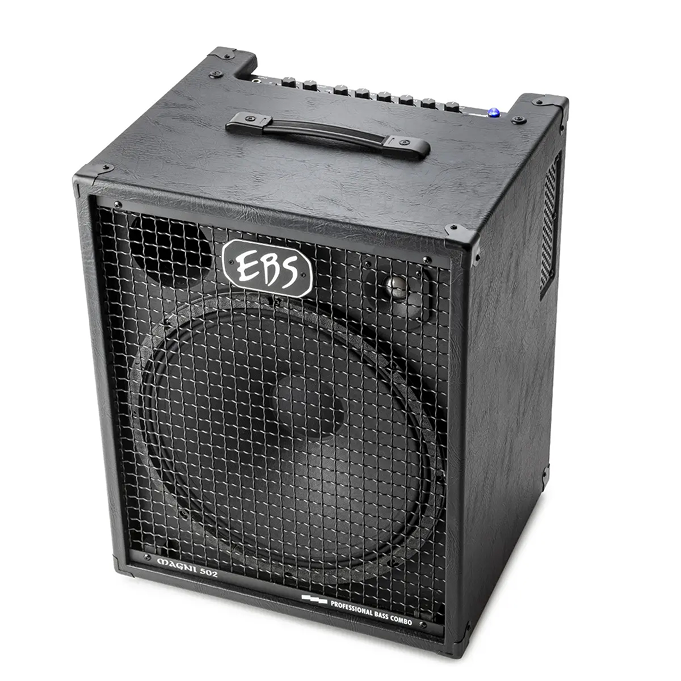

Magni 502 (115)

Configuration: 1x 15″ Neodymium Speaker + tweeter
Frequency Response: 30 – 20k Hz
Size: (H x W x D) 56 cm / 22″ / 44 cm / 17.3″ / 36.5 cm / 14.4″
Weight (total): 16.5 kg / 36.37 lbs

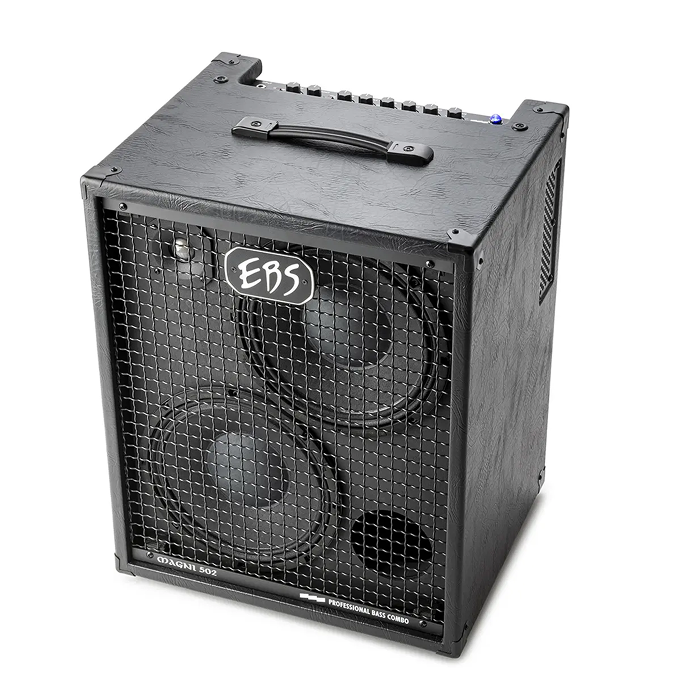

Magni 502 (210)

Configuration: 2x 10″ Neodymium Speakers + tweeter
Frequency Response: 45 – 20k Hz
Size: (H x W x D) 56 cm / 22″ / 44 cm / 17.3″ / 36.5 cm / 14.4″
Weight (total): 15.4 kg / 33.95 lbs

Showcase

Magni 502 Artists

Other Products

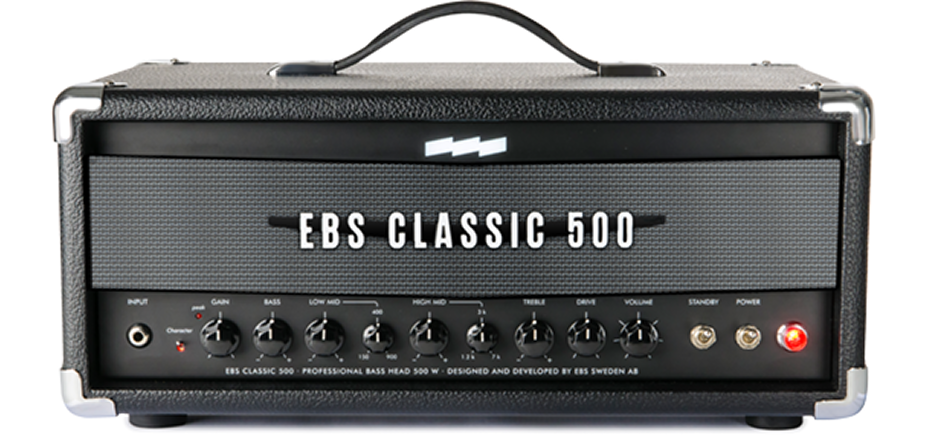

Classic 500

Classic 500

View Product

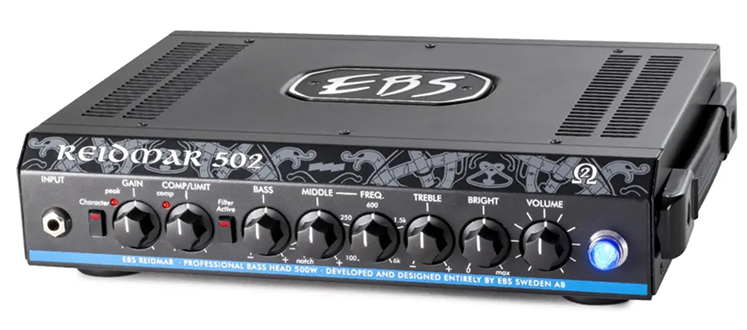

Reidmar 502

Reidmar 502

View Product

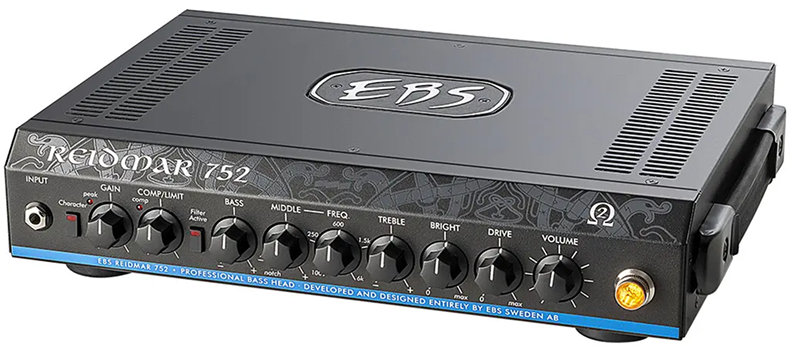

Reidmar 752
