HP – High Performance Flat Patch Cables
HP – High Performance Flat Patch Cables
Maximum signal protection. Minimal space.

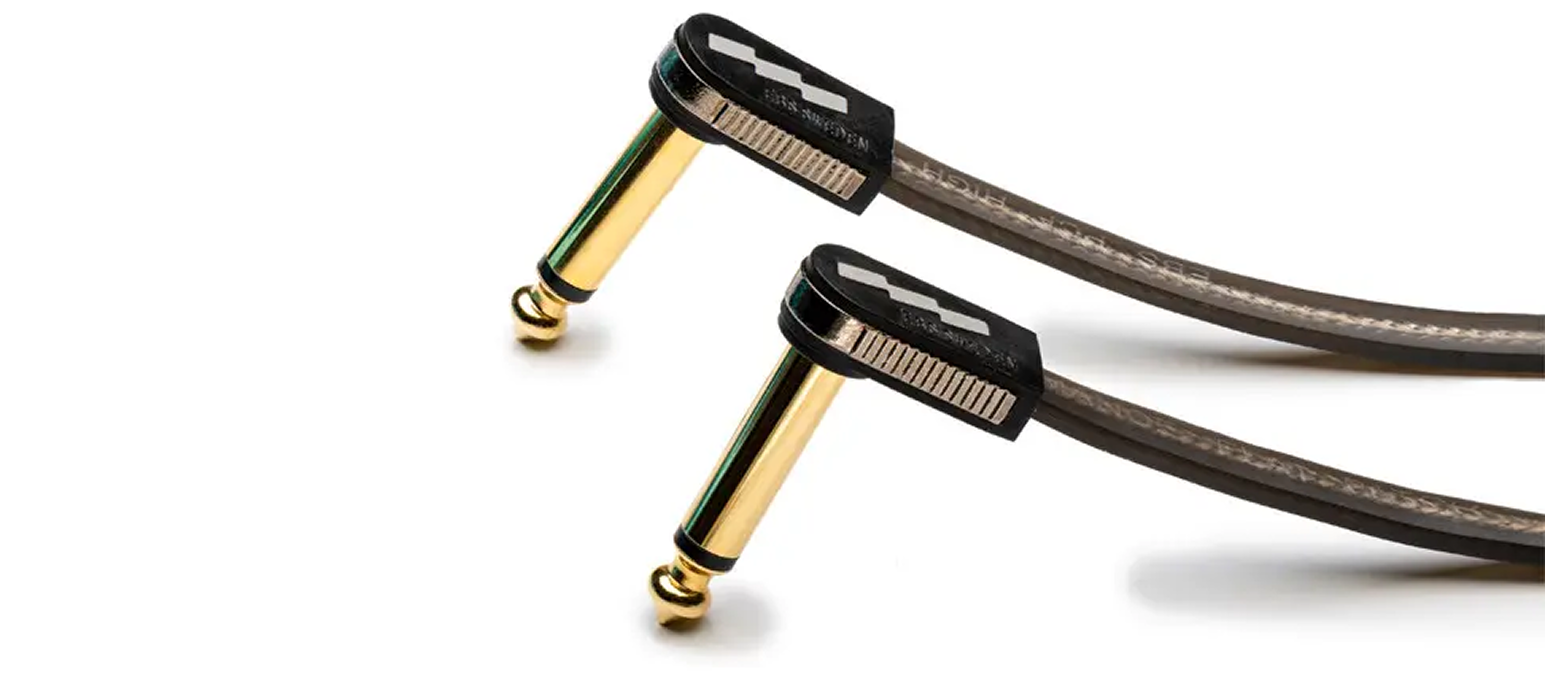

The EBS High Performance Flat Patch Cable is built for players who demand the highest level of signal integrity from their pedalboard. The ultra-compact flat connector design combines with a braided, tin-plated shield in the cable for outstanding protection against interference and unwanted noise.
Whether you’re running a simple setup or a large professional pedalboard, the High Performance cable helps preserve every detail of your sound while keeping your pedals as close together as possible.
Flexible, road-ready, and available in multiple lengths, it’s the ultimate EBS flat patch cable for players who refuse to compromise on either performance or reliability.
Features
Contact Housing
Die-cast Welded Zinc Contact Housing, 30% Reduced Size Contact Housing *
Contacts
24K Gold Plated Contacts *
Shielding
Extremely well-shielded Cables with PE and Tin-plated Copper Braid Shield
Resistance & Capacitance
Extremely Low Resistance & Capacitance
Available Lengths
10, 18, 28, 58, 78 & 98 cm lengths
Notes
* Features marked with *.
Specs
Contact House
24 Carat Gold Plated contacts, 30% reduced size (since Jan 2021), ribbed side for better grip
Double Shield
Conductive PE and Tin-plated Copper Braid for strong LF & HF interference protection
Conductor
Flexible copper conductor, low voltage audio signal system
Operating Temperature
-15ºC to +70ºC
Outer Insulation
PVC
Signal Copper Cores
20 x 0.12 mm
Signal Insulation
PE (polyethylene)
Tin-plated Copper Braid Shield
96 x 0.12 mm
Capacitance Cond./Shield
< 10 pF/decimeter
Conductor Resistance
< 10 mΩ/decimeter
Dimensions
6.5 x 2.65 mm (rectangular cable), 22 x 11.5 x 5.7 mm (contact house)
