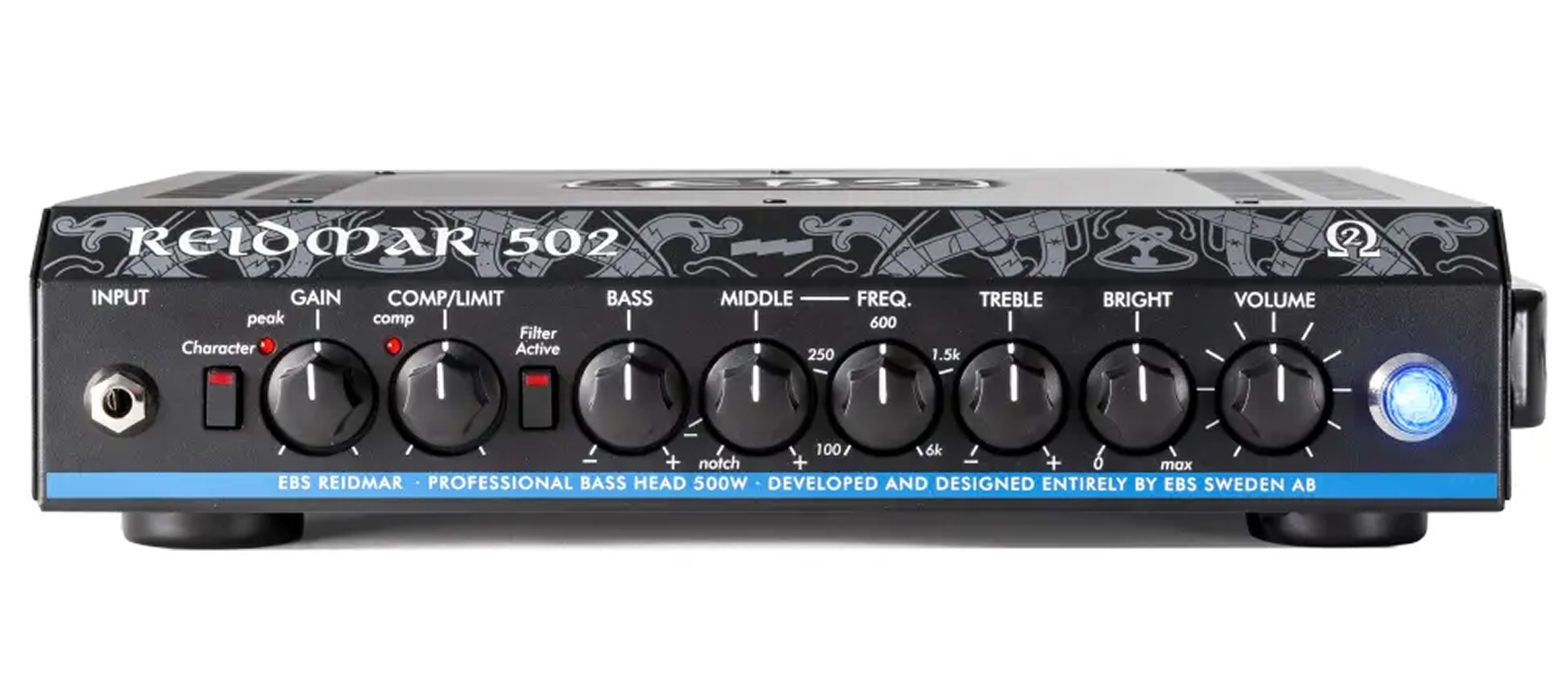

The EBS Reidmar 502 lets you carry less to the gig without leaving anything important behind.
Whether you’re driving a full speaker rig, playing a silent stage, or recording direct in the studio, the Reidmar 502 adapts effortlessly to the way you work.
It delivers 500 watts of punch, driving up to two 4-ohm cabinets with proper 2-ohm stability. EBS’s soft clip technology ensures powerful, dynamic sound without the excessive compression typically found in compact heads, providing you with tighter lows, clear mids, and crisp highs at any volume.
The analog preamp features EBS’s adjustable compressor/limiter and a responsive 4-band EQ with powerful filters for precise tonal shaping. The effects loop, balanced XLR output, line output, and headphone jack make the Reidmar equally at home on stage, in the studio, or on silent stages.
The Reidmar 502 and 752 feature class D power modules co-developed by EBS.
Dive deeper into the secrets of the EBS Reidmar amps here >>
Features
Type
Analog Preamp, 2-ohm D-Class Power Amp
Compressor/Limiter
Built-in Compressor/Limiter
EQ
Extremely Powerful 4-band EQ
Effects Loop
Yes
Character Filter
Yes
Balanced XLR-Out
With Pre/Post EQ switch and Ground Lift
Line and Headphones Out
Yes
Output Power
500 W
Specs
Input Impedance
2 Mohms
Gain Range
-00 – +30 dB
Character Filter
Shelving, High/Low Pass, +7 dB @ 40 Hz, -2 dB @ 800 Hz, +3 dB @ 10 kHz
Tone Controls
Bass Shelving +/-18 dB @ 60 Hz, Mid Bandpass Filter 100 – 6000 Hz +/- 12-15 dB, Treble Shelving +/-18 dB @ 6 kHz, Bright Shelving +15/-0 dB @ 10 kHz
Balanced Output
-10 dBv, Pre/Post EQ, GND Lift
Output Power
250 W RMS / 500 W RMS @ 4 and 2 ohms load respectively
Dimensions (WxDxH)
12.8 x 9.8 x 3.0″ (32.5 x 25 x 7.5 cm)
Weight
3.3 kg (7.3 lbs.)
Manual & Speaker guide cheat sheet
