Runsten Power Supply

Runsten Power Supply

EBS RUNSTEN® – High-Powered, Ultra-Flexible DC Power Supply for Pedalboards
The EBS RUNSTEN® is a groundbreaking DC power supply built to handle the full range of today’s pedalboard demands—power, flexibility, and portability—all in one compact unit.

With ten isolated DC outputs (each providing up to 900 mA), RUNSTEN replaces multiple power bricks and eliminates noise-related headaches. Most outputs can be switched between 9V and 12V, and with the included cable kit, you can combine outputs for 18V, 24V, or high-current needs.

A pair of USB outputs lets you charge a phone or power accessories during gigs. Lightweight yet robust, RUNSTEN runs on 100–240V AC, making it perfect for both home setups and world tours.

A serious power upgrade, without the bulk.

Features

Output Voltage

Powers 9, 12, 18, 24V DC pedals*

Power Outputs

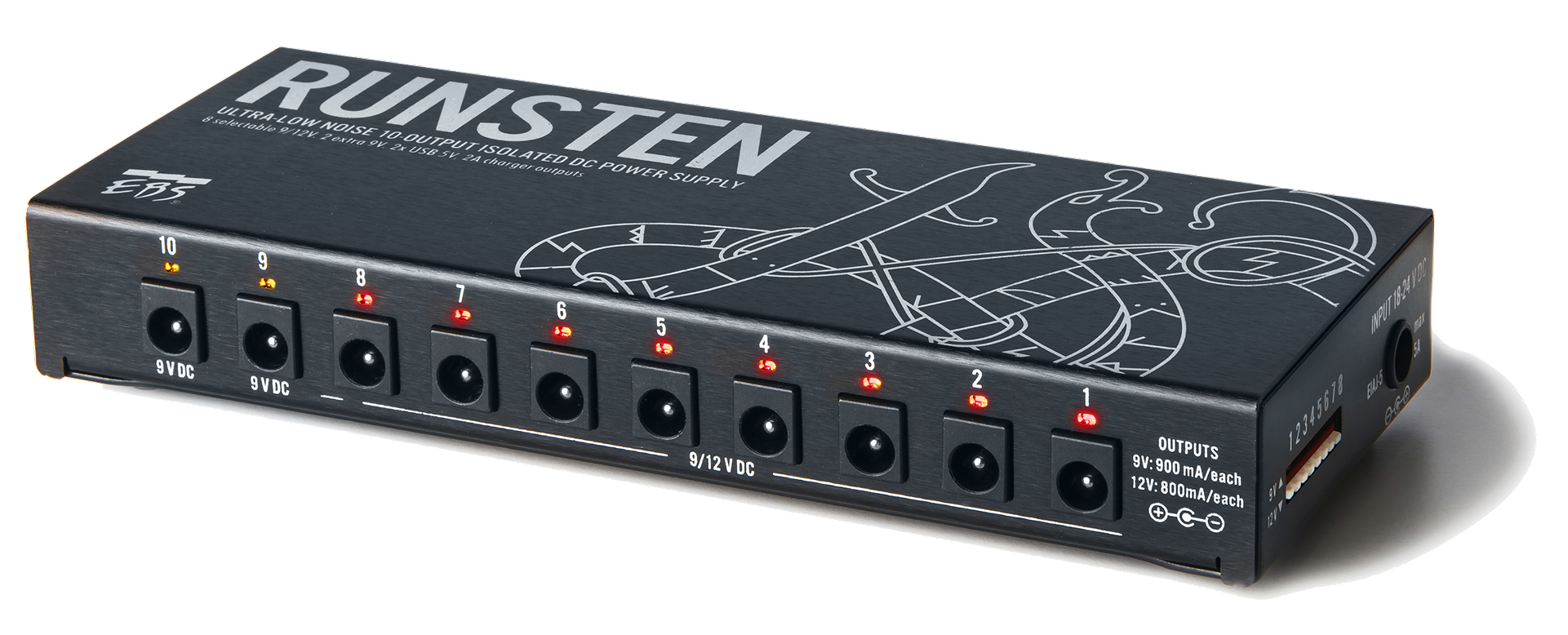

10x isolated 9V DC / 900mA outputs, 8 switchable to 12V DC

Extended Current

Up to 1.8 A with included adaptor**

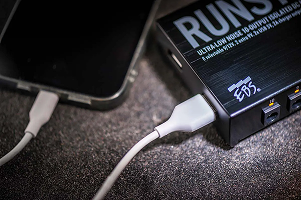

USB Charging

2x 5V USB outputs

Power Handling

Universal 100–240V

Noise Level

Clean, ultra-low noise power

Protection

Short circuit protected

Dimensions

175 x 69 x 25 mm / 6.89 x 2.72 x 0.98 inch

Weight

310 g / 0.68 lbs

Included Cables


6x DC1-48 90/0, 1x Center Negative to Center Positive adapter,
1x 2.1 mm to 2.5 mm adapter,
1x Parallel Adapter Y-cable (current doubler),
1x Serial Adapter Y-cable (voltage doubler)

Note on 18/24V

Requires connecting two 9 or 12V outputs via included Serial adaptor*

Note on 1.8A Output

Requires connecting two outputs via included Parallel adaptor**

Specs

Ultra-low Noise DC Outputs


8 x selectable 9V or 12V, 900 mA / 800 mA each
2 x 9V, 900 mA each
All outputs short-circuit protected and galvanically isolated
Center negative on 2.1 mm DC jacks

USB Outputs

2 x USB Type A, 5V, 2A each

Extended Use of Outputs


Serial Adaptor connects two 9V or two 12V outputs for 18V or 24V DC
Parallel Adaptor connects two outputs of same voltage to double current (up to 1800 mA)
Dedicated adaptors for polarity inversion and 2.5 mm jack available
Extra adaptors sold separately on EBS webshop

Dimensions

175 x 69 x 25 mm (6.89 x 2.72 x 0.98 inch)

Weight

310 g (0.68 lbs)

Input Specifications


Input voltage range: 18-24V DC
Max power handling: 120W at 5A input
Supplied AC/DC adapter: 24V / 2.5A (60W)
Adapter size: 111 x 48 x 33 mm (4.37 x 1.89 x 1.30 inch)
Adapter weight: 205 g (0.45 lbs)
