Unichorus


Unichorus

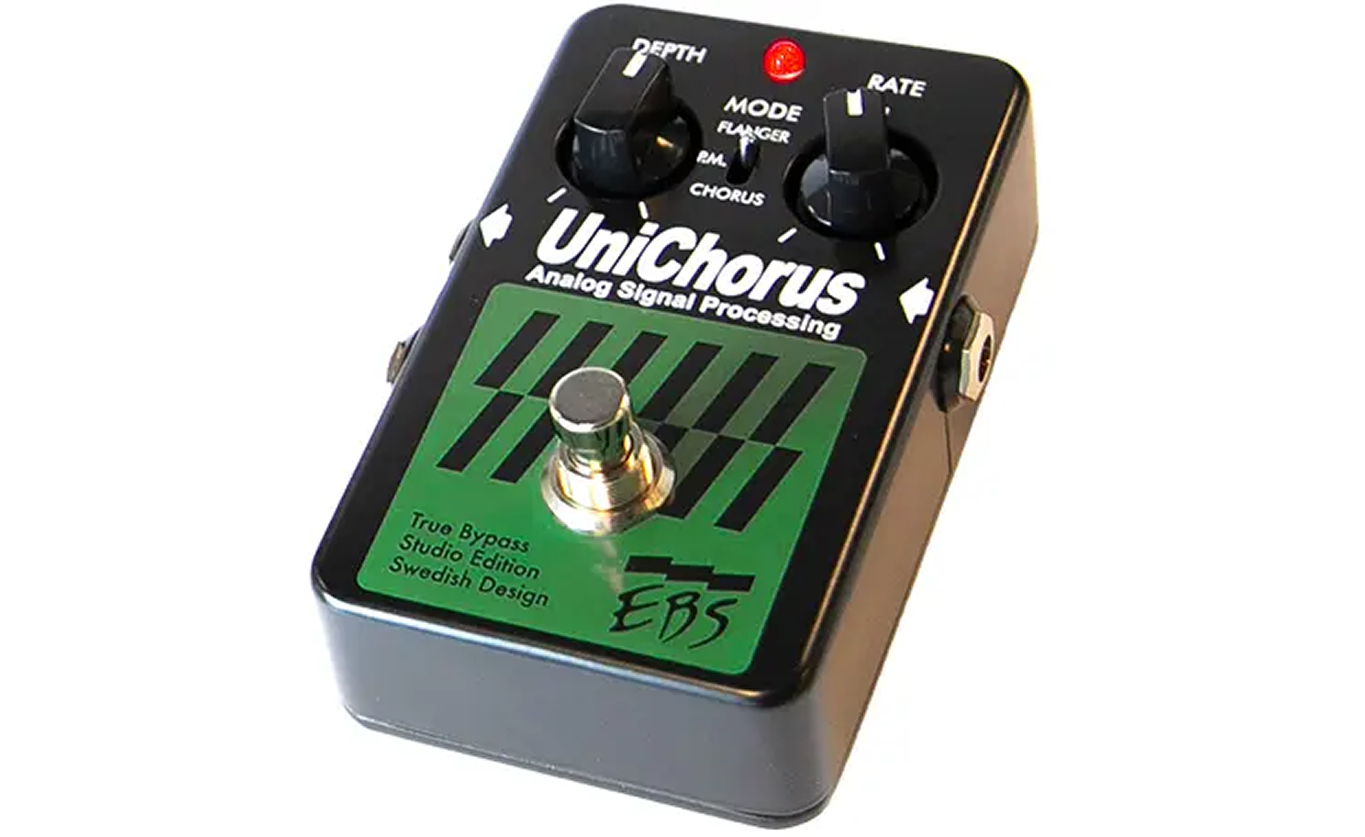

The EBS UniChorus Studio Edition Rev2 stereo effect pedal is a valuable addition to your bass rig, offering a range of benefits that enhance your sound and performance.
Unlock your creative potential with the EBS UniChorus, an advanced low-noise, studio-quality effect designed to craft your tone. Its top-notch analog processing circuitry provides a smooth, warm sound perfect for both live and recording environments. With a mix level control under the hood, you can adjust how much or how little the effect blends with your original signal.
Get 25 years of evolution in a new, lightweight box.
After 25 years of development, the Studio Edition features improved headroom sensitivity, noise reduction, and True Bypass switching. It also includes protection against voltage overloads up to 18V DC power, offering versatility straight out of the box. The Rev2 model comes in a lighter chassis, reducing the weight to 235 grams, compared to the previous 440 grams.
What can UniChorus do for you?
It enhances the sound spectrum by adding depth and dimension, creating a fuller, more spacious bass tone with a sense of ambiance. It offers greater versatility, allowing you to produce a range of effects from subtle modulation to pronounced pitch shifts with chorus, pitch modulation, and flanger effects. The UniChorus is not just for bass players; it’s also suitable for guitar and keyboard.
Features
Low Range
Preserve the low range
Usage
Suitable for live and studio use
Signal Processing
Analog Signal Processing
Effects Modes
Flanger, Pitch Mod and Chorus Modes
Controls
Controls for Depth and Rate
Output
Stereo output
Bypass
True Bypass Signal Relay Switching
Overvoltage Protection
Protected against overvoltage up to 18V
Power
Powered by 9 to 12V DC
Optional Power Supply
EBS AD-9 Power Supply (not included)
Specs
Nominal Input Level
-8 dBv
Input Impedance
700 Kohms
Bandwidth
+0 / -3 dB 20 – 20 kHz
Delay Bandwidth
+0 / -3 dB 200 – 8 kHz
Delay Level Mix min/max
-∞ / +3 dB
Center Delay Time
Flange 3 ms,
Chorus 5.5 ms,
Pitch Modul. 10 ms
Modulation Depth min/max
± 50% of nominal delay time
LFO Range min/max
0.15 – 7.5 Hz
Bypass
True Bypass
Dimensions (L x W x H)
2.8 x 4.5 x 1.4″ (70 x 115 x 35 mm)
Weight
235 g (0.52 lb.)</
