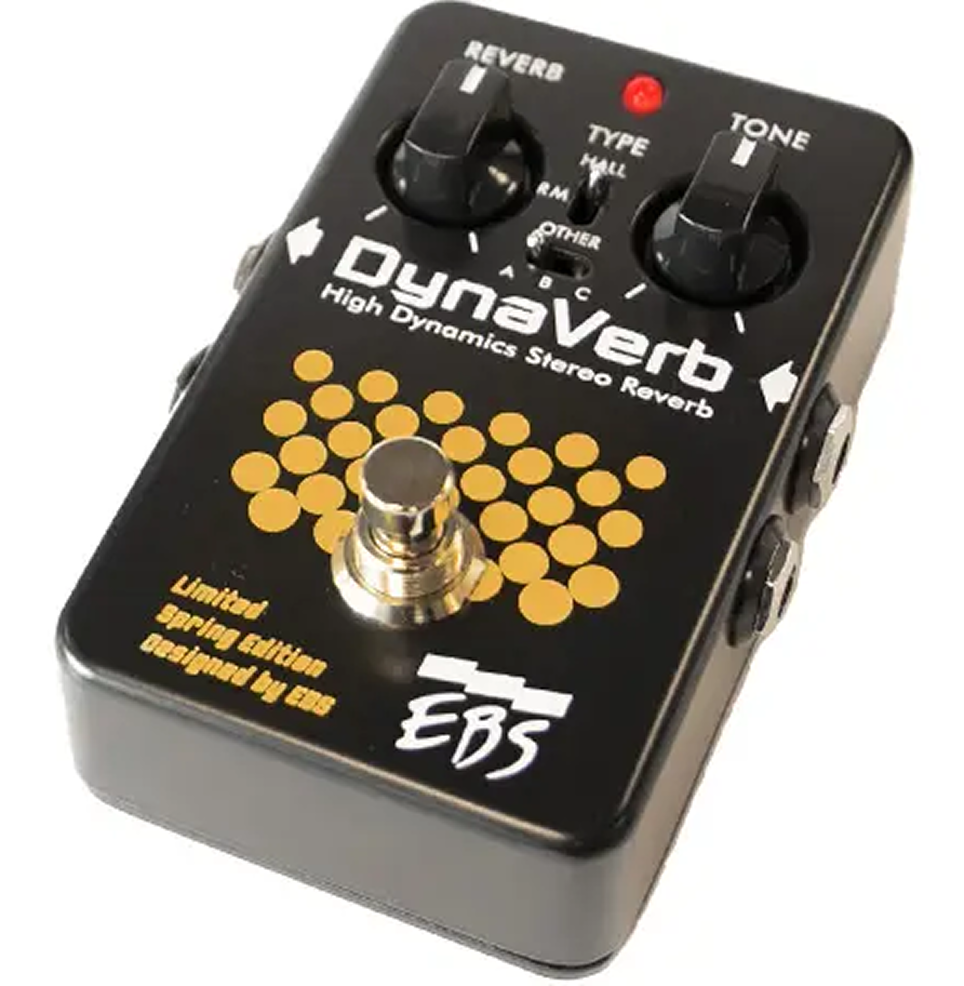

EBS DynaVerb Limited Spring Edition. Studio-quality stereo reverb in a compact, user-friendly stompbox.
This special edition adds Spring, Gated, and Reversed reverbs to the original six Room and Hall types—offering everything from subtle ambiance to dramatic effects. Designed for bass but great on guitar, keys, and vocals too.
Simple, Versatile Control:
Reverb sets the wet/dry mix
Tone shapes the treble
Dual switches select reverb type and variation (A/B/C)
Built for Performance:
24-bit digital processing
Optional parallel mode via internal switch
Lighter chassis: just 245g (down from 400g)
Use with 9V DC power (battery backup only; not included)
Add space, depth, and expression to your sound—on stage or in the studio.
Program matrix:
Switch 1 | Switch 2 | Program |
“Hall” | A B C |
Big Hall (2.8s) Small Hall (1.5s) Church(7s) |
“RM”(Room) | A B C |
Room (1.3s) Big Ambience Chapel (3s) |
“Other | A B C |
Gated (0.8s) Reverse (1.8s) Spring (2s) |
Features
Low Range
Preserve the low range
Usage
Suitable for live and studio use
Category
High Dynamics Stereo Reverb with 24-bit digital processing circuitry
Controls
Reverb and Tone
Types
Hall, Room, Reversed, Gated, and Spring
Other
A, B, C switch offer three variations of each type
Internal control
Serial/parallel (internal switch)
Bypass
True Bypass Signal Relay Switching
Specs
Nominal Input Level
-8 dBv
Input Impedance
1 Mohms stereo 500 kohms mono
Dry Bandwidth
+0 / -3 dB 20 – 20k Hz
Reverb Bandwidth
+0/-3 dB 20 – 20k Hz
Tone Low Pass Filter
min / max 1 / 20 kHz
Reverb Types
3 Halls, 3 Rooms, and 1 Reversed, 1 Gated, and 1 Spring-type effect.
Sampling frequency
48 kHz
Dynamic Range
107 dB A-weighted
Dimensions (L x W x H)
2.8 x 4.5 x 1.4″ (70 x 115 x 35 mm)
Weight
245g (0.54 lb.)
Bypass
True Bypass
Power Requirements
9 – 18 V DC Regulated, 80 mA max.** EBS recommends the use of the EBS AD-9 Pro DC adapter or Runsten Power Supply (not included).
