EBS BassIQ
EBS BassIQ

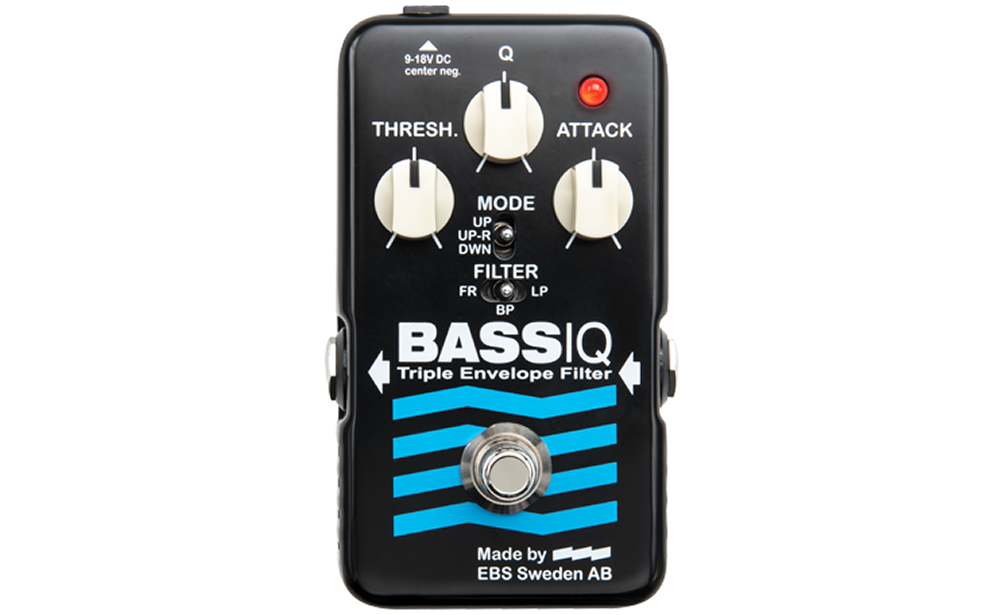

THE EBS BASSIQ ENVELOPE FILTER FEATURES ENHANCED VERSATILITY AND RESPONSIVENESS. THIS IS A FUN, INSPIRING, AND MUSICAL ANALOG ENVELOPE FILTER.
The EBS BassIQ delivers everything from classic auto-wah to funky synth-bass tones with responsive analog performance that reacts to your playing style.
Dial in your perfect tone with Q, Threshold, and Attack controls that shape your filter effect to fit any playing scenario.
Switch between Up, Down, and Up-R modes to explore a wide range of envelope filter characters — from smooth sweeps to wild funk and growling synth bass.
Three selectable pass filters — Full Range, Band Pass, and Low Pass — let you instantly reshape the tonal character of the effect.
Internal trim pots give you even more control over gain, high-frequency mix, and envelope range.
Designed to replace the original BassIQ, this updated version is more compact and pedalboard-friendly while delivering even better tone shaping and response.
Features
Low Range
Preserve the low range
Usage
Suitable for live and studio use
Filter Type
Flexible envelope filter
Controls
Q, Threshold & Attack-controls
Modes
Up, UP-R and Down modes
Filter Options
Low Pass, Band Pass & Full Range filters
Fine Tuning
Internal controls for fine tuning
Bypass
True Bypass
Specs
Nominal Input Level
-10 dBv
Input Impedance
1.8 Mohms
Output Impedance
100 ohms
Dry Bandwidth
+0 / -2 dB, 20 – 20 kHz
Filter
Range: 100 – 2.5k Hz
Q: 0.7 – 15
Mode: Down / Up-Range / Up
Type: Low Pass, Band Pass, Full Range
Threshold
-50 to +6 dBv
Attack Time (80%)
50 ms – 2 s
Dimensions (W x H x D)
2.6″ x 4.5″ x 1.9″ (67 x 115 x 48 mm)
Weight
315 g (0.7 lb.)
Type
Analog Effect, Relay Switching
Power Requirements
9, 12, or 18 V DC, 55 mA max (shuts off below 6 V)
