Solder Free Flat Patch Cable Kit

Solder Free Flat Patch Cable Kit

EBS INTRODUCES ITS GROUNDBREAKING SOLDER-FREE FLAT PATCH CABLE KIT. THIS NEW OFFERING PROMISES FAILPROOF DO-IT-YOURSELF ASSEMBLING WITH UNMATCHED PERFORMANCE WHEN CREATING CUSTOM-LENGTH, SOLDER-LESS PATCH CABLES.

At EBS we believe that the tools for your musical creativity and performance should be clutter-less and easily customizable to fit your personal preference. Long gone are the times when cables and adapters set the limit for how you could design your pedal board.

With our groundbreaking Solder-free Flat Patch Cable Kit you can easily create your own cables to fit your needs with failproof do-it-yourself assembling.

The low profile contact housing and flat cable matches our other assortment of high-quality space-saving pedalboard accessories.

The unique design solves common problems with connection reliability thanks to its dual anchor screws and its flat cable design. The two anchor screws are specially designed to create a secure fastening in the exterior coating of the elliptical flat cable. This helps prevent slipping and provides a reliable audio signal and a neat pedal board.

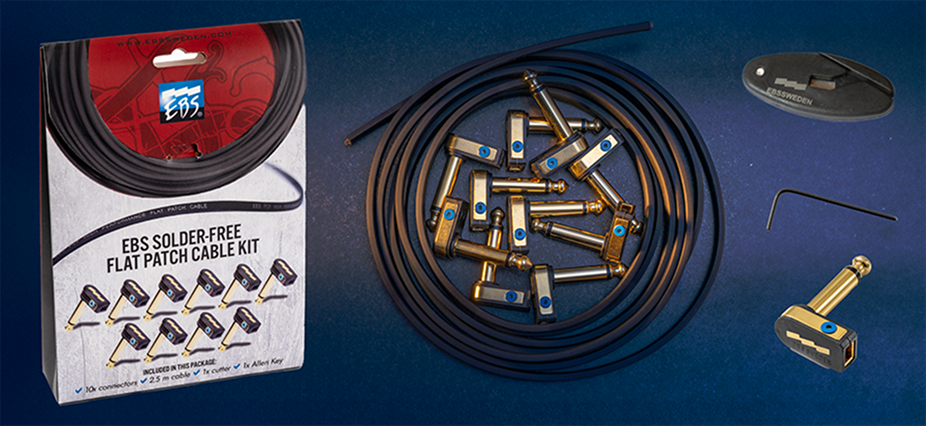

The SOLDER-FREE FLAT PATCH CABLE KIT includes

10 or 6 contact housings (depending on kit size)
1.5 m (4.92 ft) or 2.5 m (8.2 ft) high quality flat cable (depending on kit size)
Cutter Tool
Allen Key

Features

Contact Size

30% Smaller Super Compact Angled Contacts than the original PCF cable

Contact Tip

24K Gold Plated Contact Tip

Cable Type

Flat Patch Cables

Conductors

Copper Conductors

Shielding

Extremely Well Shielded

Resistance

Low Resistance

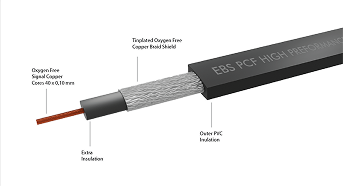

Specs

Conductor

Flexible copper conductor, low voltage audio signal system

Operating Temperature

-15ºC to +70ºC

Outer Insulation

PVC

Signal Copper Cores

40 x 0.1 mm

Signal Insulation

PE (polyethylene)

Dimensions

6 x 3 mm (rectangular cable), 23.4 x 11.4 x 7.25 mm (contact house)

Connectors

¼” 90° angled audio plug

Product variants

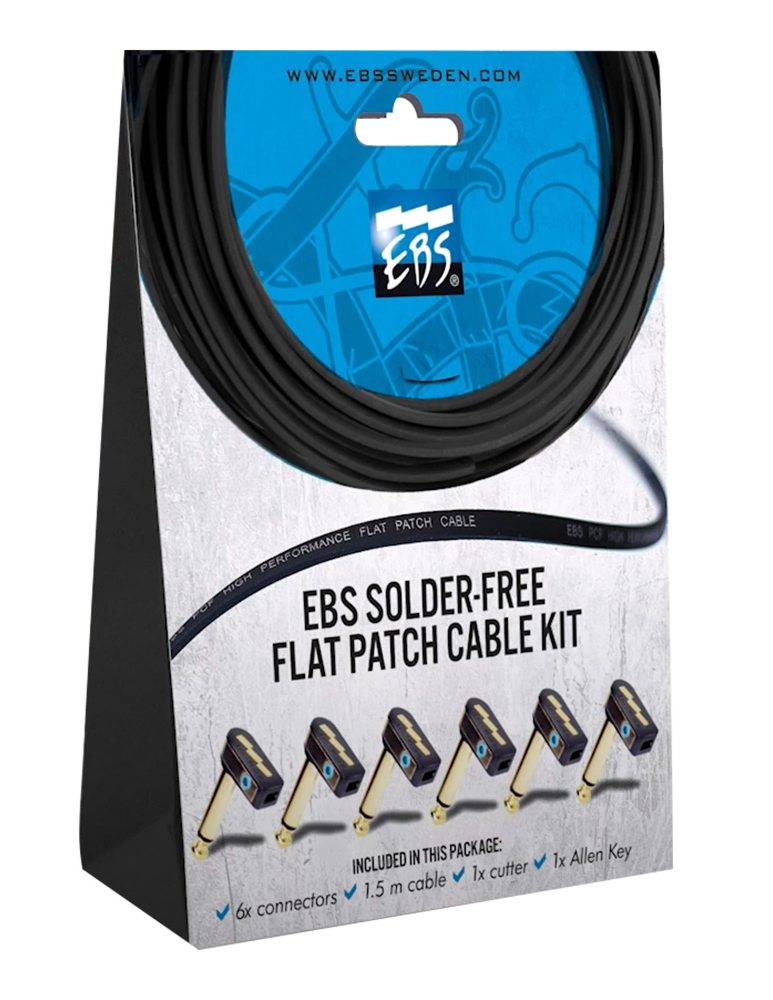

Solder-Free with 6 contact housings

1.5 m (4.92 ft) high quality flat cable
6 Contact Housings
Cutter Tool
Allen Key

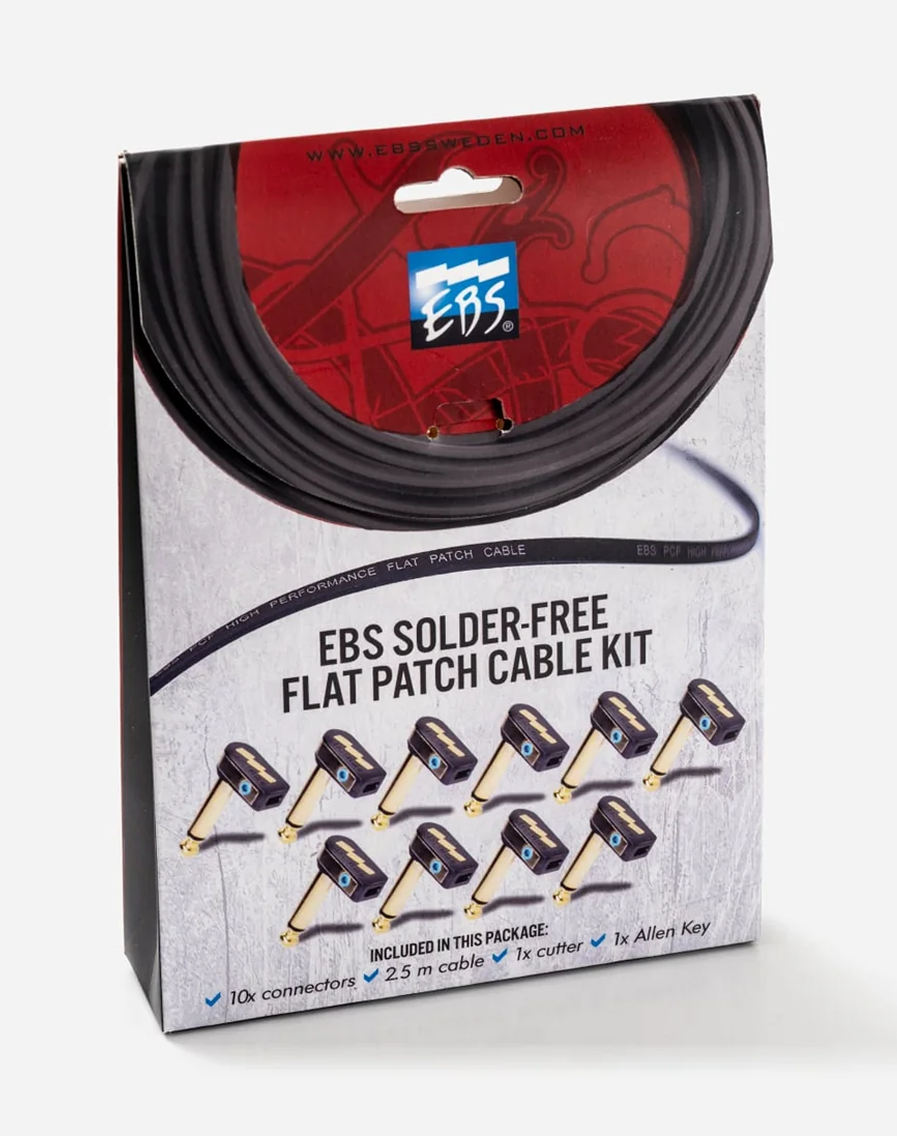

Solder-Free with 10 contact housings

2.5 m (8.2 ft) high quality flat cable
10 Contact Housings
Cutter Tool
Allen Key
