Premium Gold Flat Patch Cables
Premium Gold Flat Patch Cables

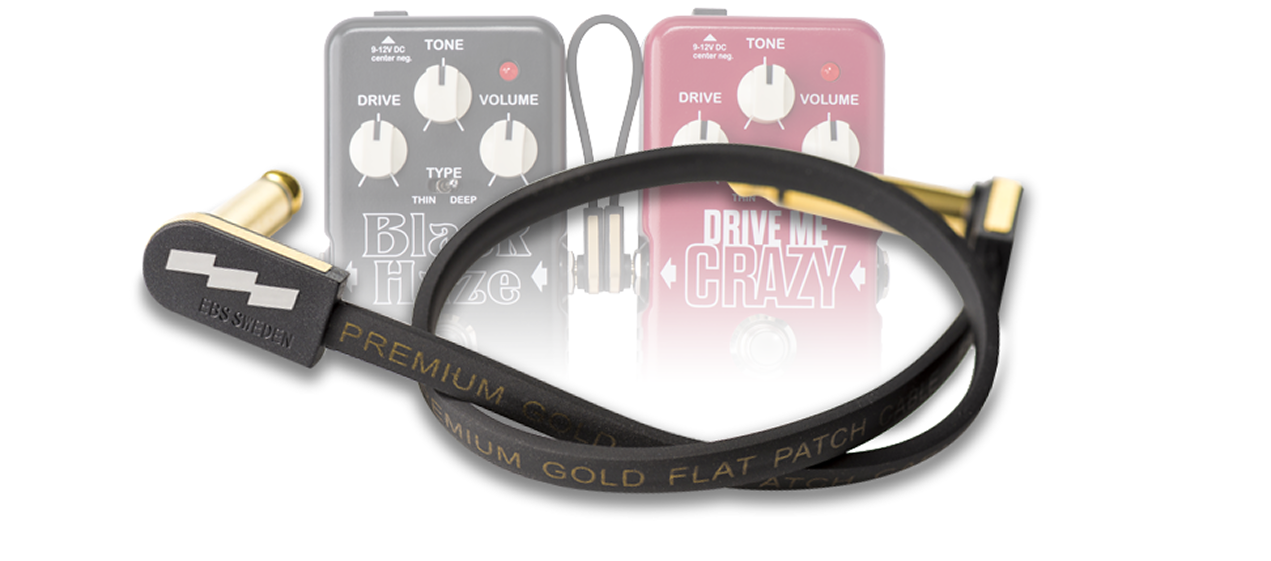

THE PREMIUM GOLD FLAT PATCH CABLE IS THE MOST COMPACT SERIES OF EBS FAMOUS FLAT PATCH CABLES.
Designed to solve space issues on crowded pedalboards without sacrificing sound quality, the EBS Premium Gold Flat Patch Cable offers a sleek, low-profile connection with 24K gold-plated contacts. The cable’s elegant design and superior flexibility make it a go-to choice for musicians who want reliable, professional-grade signal transfer in the smallest possible format. Available in multiple lengths to suit any board layout, this is the cable for those who value both form and function.
Features
Contact Housing
Die Cast Welded Zinc Contact Housing
Connectors
Gold Plated Connectors and Housing
Cable Type
Flat Patch Cables
Conductors
Copper Conductors
Contacts
Super Compact Angled Contacts
Shielding
Extremely Well Shielded
Resistance
Very Low Resistance
Specs
Contact House
24 Carat Gold Plated
Double Shield
Conductive PE and Copper shields protect from LF and HF interferences
Conductor
Flexible copper conductor for low voltage audio signals
Operating Temperature
-15ºC to +70ºC
Outer Insulation
PVC
Signal Copper Cores
20 x 0.12 mm
Signal Insulation
PE (polyethylene)
Twisted Copper Shield
45 x 0.12 mm
Capacitance Cond./Shield
< 10 pF/decimeter
Conductor Resistance
< 10 mΩ/decimeter
Dimensions
5.3 x 2.5 mm (rectangular cable), 22.0 x 11.5 x 5.0 mm (contact house)
