EBS-DLS – Stereo (TRS) Flat Patch Cables

EBS-DLS – Stereo (TRS) Flat Patch Cables

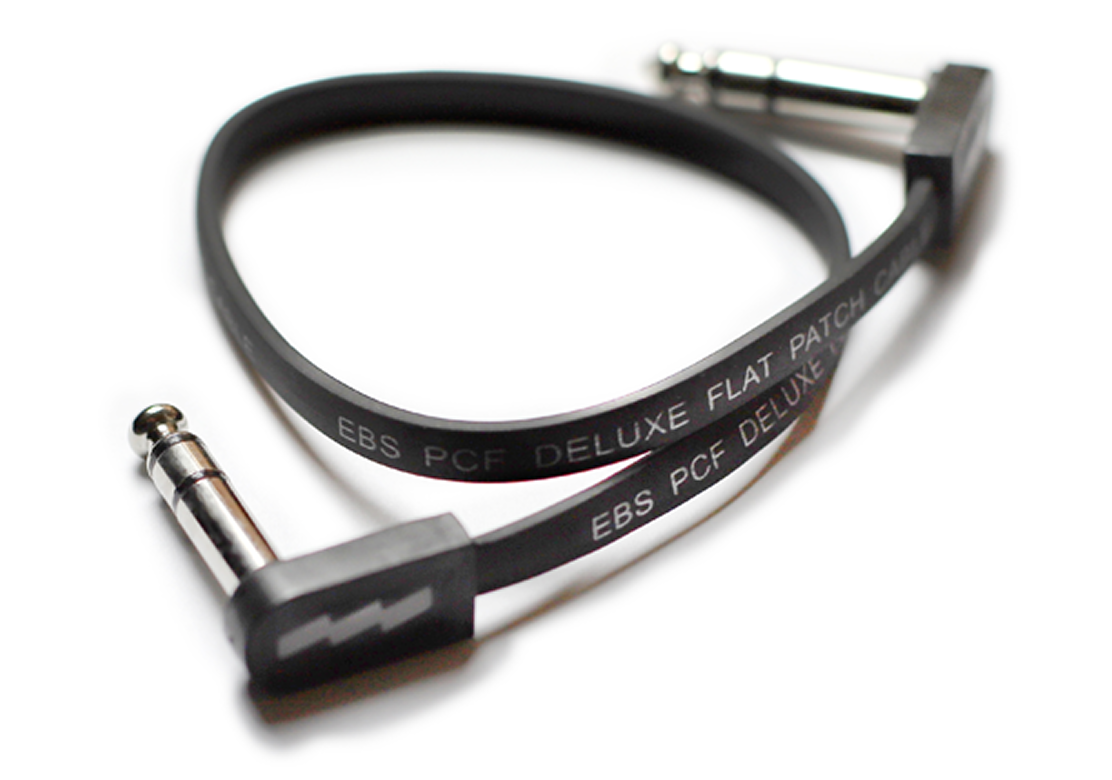

THE EBS PCF DELUXE STEREO FLAT PATCH CABLE (PCF-DLS) IS BASED ON THE EBS ORIGINAL FLAT PATCH CABLE BUT WITH TRS CONTACTS TO TRANSPORT STEREO SIGNAL.

If you have ever struggled with limited space on your pedalboard, the super compact and affordable EBS Flat Patch Cables will help end the frustration. They perform excellently on sound and flexibility while reducing the required space between pedals to a minimum with their unique design.

Features

Contact Housing

New! 30% Reduced Size Contact Housing (from September 2021)

Cable Type

Flat Patch Cables

Conductors

Copper Conductors

Contacts

Super Compact Angled Contacts

Shielding

Extremely Well Double Shielded

Resistance

Low Resistance

Cable Type

Stereo (TRS) cables

Available Lengths

28 & 58 cm models

Specs

Conductor

Flexible copper conductor, low voltage audio signal system

Operating Temperature

-15ºC to +70ºC

Outer Insulation

PE (polyethylene)

Signal Copper Cores

20 x 0.12 mm

Signal Insulation

PE (polyethylene)

Copper Twisted Shield

38 x 0.12 mm

Capacitance Cond./Shield

< 10 pF/decimeter

Conductor Resistance

< 10 mΩ/decimeter

Dimensions

6 x 3 mm
