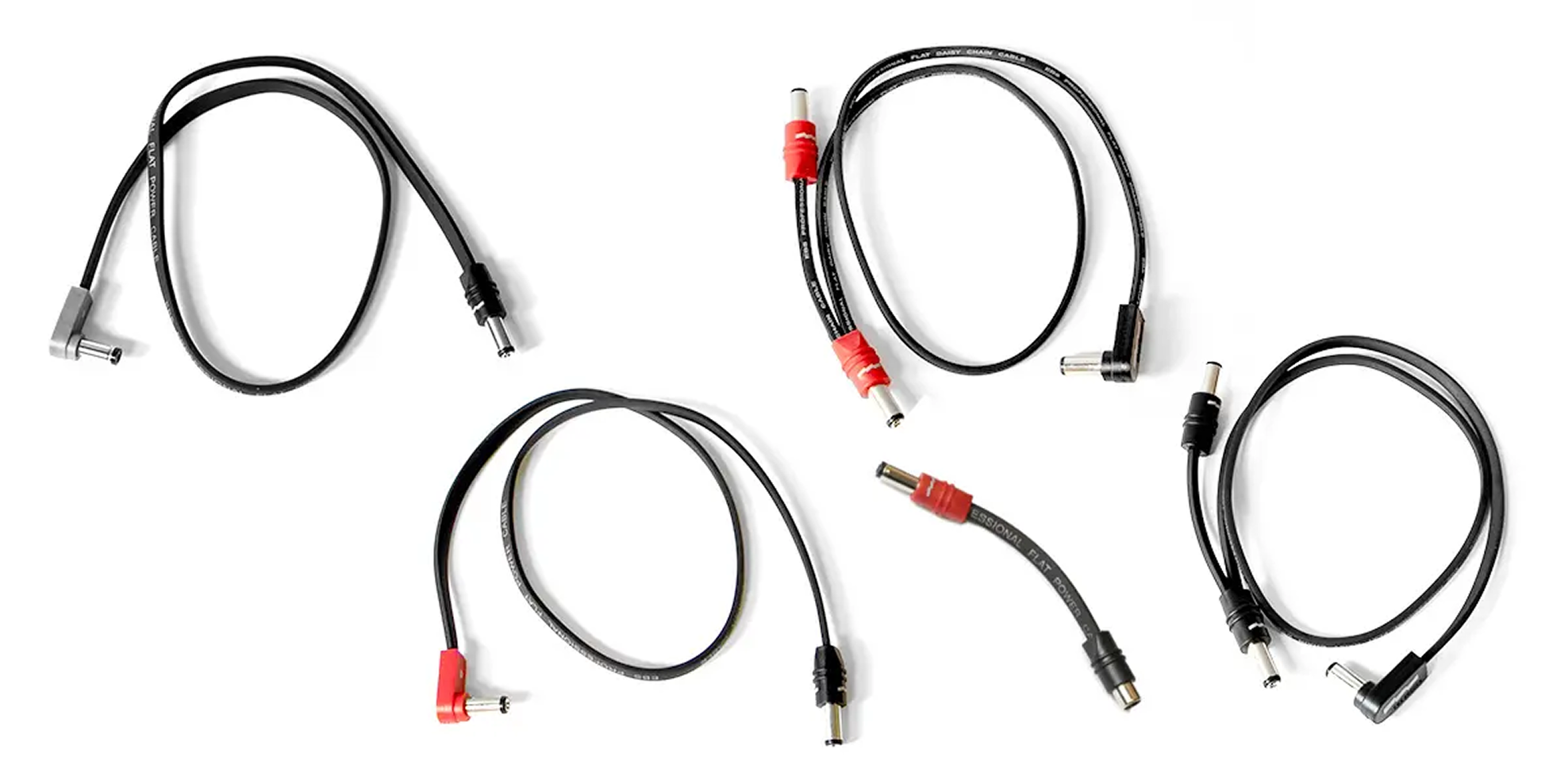

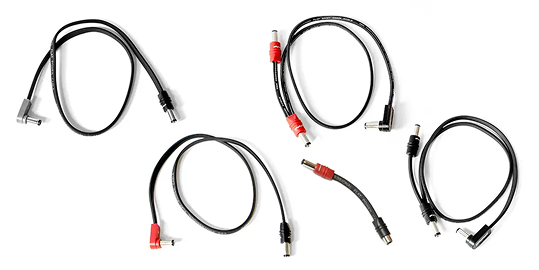

Do you use pedals that don’t match the outputs of your power supply? With EBS new power adaptor cables, there’s a way to solve most matters.
It sucks when you realize your coolest vintage pedal or latest digital processor-driven unit can’t be fed from your pedalboard power supply because they are thirstier or use different power inputs than your power supply features. At worst, you may even skip bringing your favorite toys to avoid the hassle. However, with the new EBS adaptor cables, you can solve many of these issues easily and save the space that those extra power supplies may occupy.
Need to convert a 2.1 mm plug to 2.5 mm? No problem.
Need more current than you get from one output? No problem.
Need 18 or 24V DC power from 9 and 12V outputs? No problem.
You can even change the polarity from the common Center Negative to Center Positive using one of the new EBS adaptor cables.
Here’s how you do it:
To go from 2.1 to 2.5 mm, use the DC1-48 90/0 2.5 adaptor.

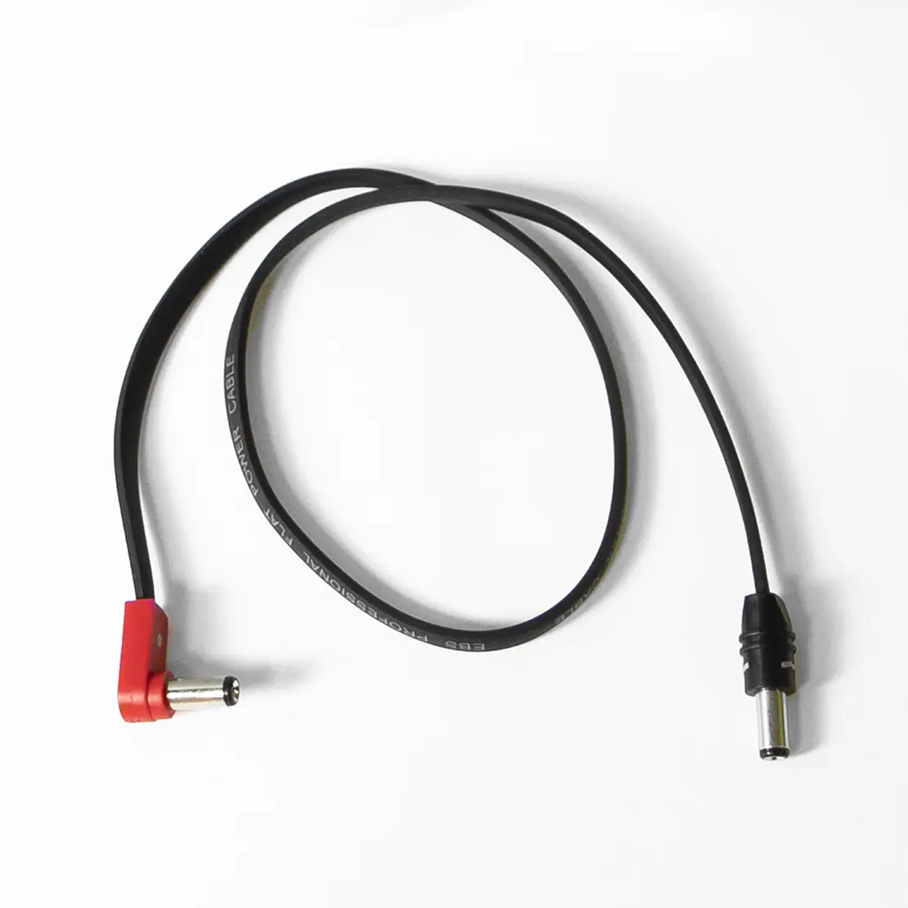

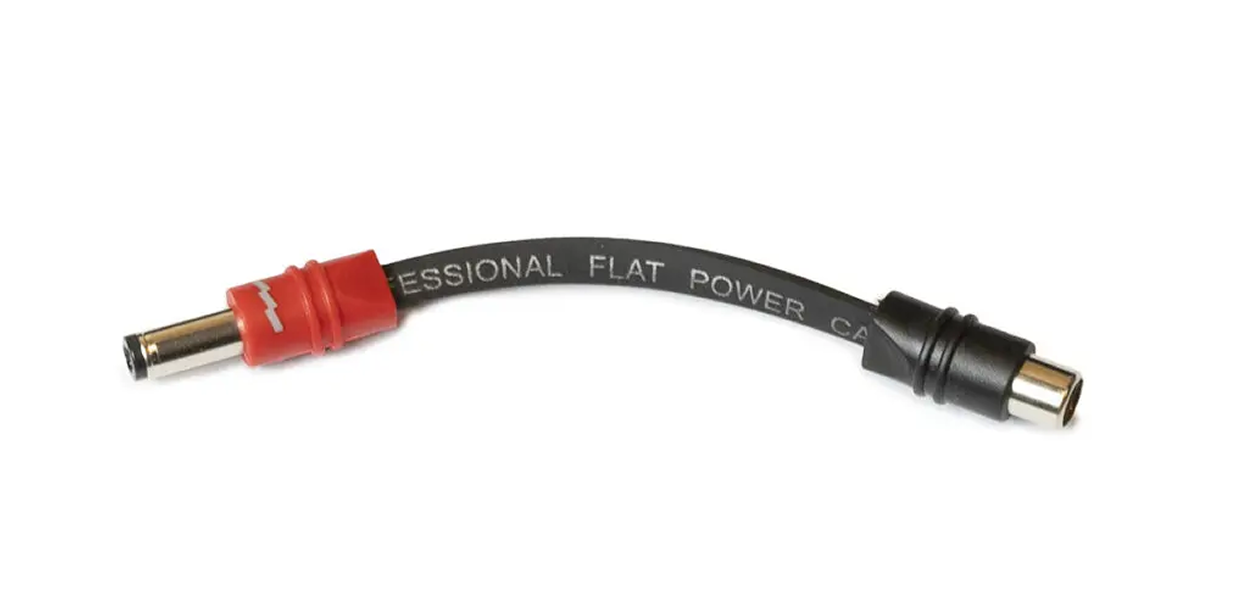

Want to change the polarity? Use the DC1-48 90/0 RP or the short DC-RPA adaptor (female to male).

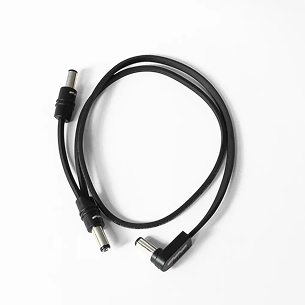

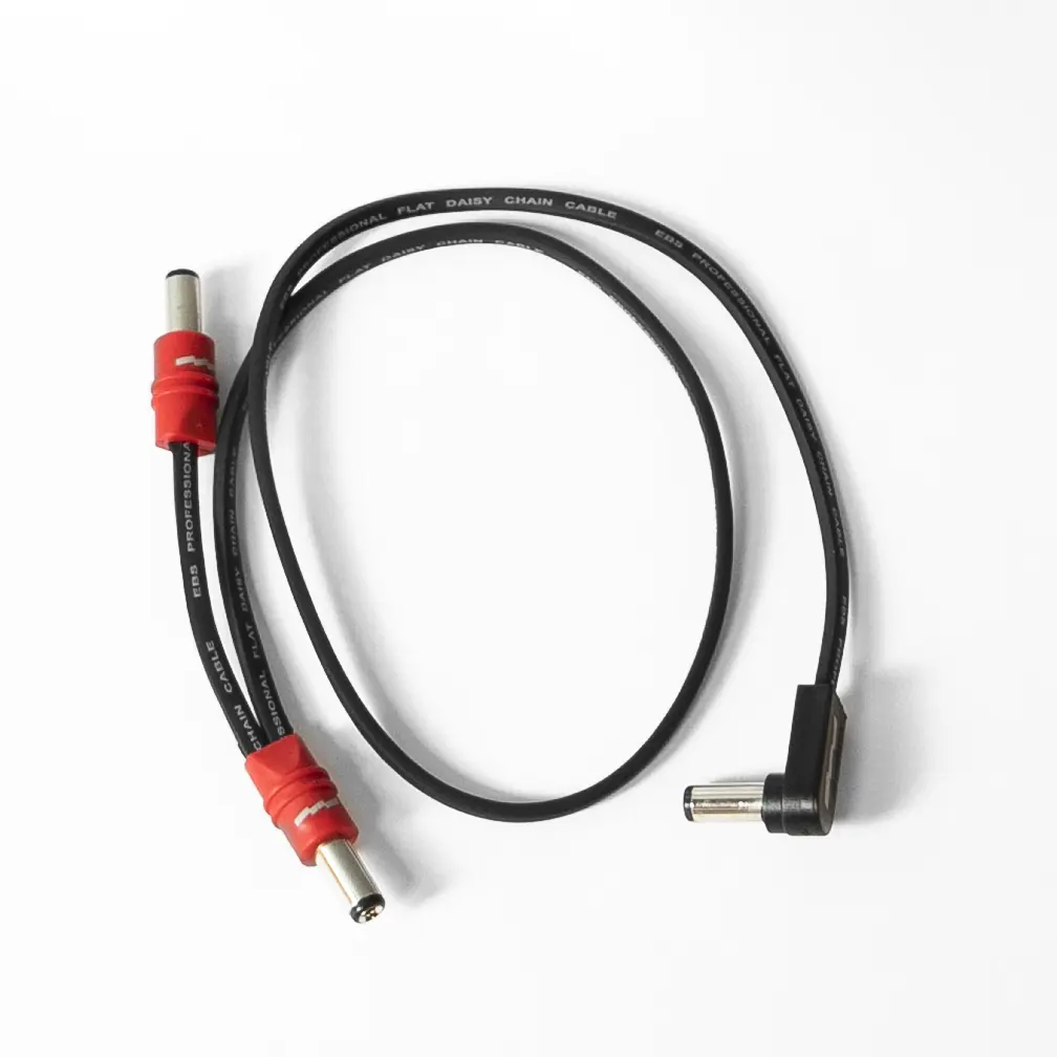

To increase the current, use the DC1-48 90/0 PAR and connect two outputs from your power supply. The total current will be the current from both outputs added together.*
To increase the voltage, use the DC1-48 90/0 SER and connect two outputs from your power supply. The total voltage will be the voltage from both outputs added together.*
Features
Problem Solved
Use pedals that don’t match your power supply outputs? EBS new power adaptor cables solve most issues.
Common Issues
Vintage pedals or digital processors may require different power inputs or currents than your supply offers.
Benefits
Save space by avoiding extra power supplies with EBS adaptor cables.
Convert Plug Size
Convert 2.1 mm plug to 2.5 mm using DC1-48 90/0 2.5 adaptor.
Change Polarity
Switch polarity with DC1-48 90/0 RP or short DC-RPA adaptor (female to male).
Increase Current
Use DC1-48 90/0 PAR to connect two outputs from power supply for combined current.*
Increase Voltage
Use DC1-48 90/0 SER to connect two outputs from power supply for combined voltage.*
Note
* Total current or voltage equals sum of both outputs.
Specs
Compatibility
Solves power issues with pedals requiring uncommon input types, higher current, or different voltage.
Plug Conversion
Convert 2.1 mm to 2.5 mm using DC1-48 90/0 2.5 adaptor.
Polarity Swap
Switch polarity with DC1-48 90/0 RP or DC-RPA (female to male) adaptors.
Current Boost
Use DC1-48 90/0 PAR to combine two outputs for increased current.*
Voltage Boost
Use DC1-48 90/0 SER to combine two outputs for increased voltage.*
Use Case
Perfect for vintage pedals, digital processors, and high-demand units.
Advantage
Eliminate the need for bulky extra power supplies and free up pedalboard space.
Note
*Total current or voltage equals the sum of both outputs used.
