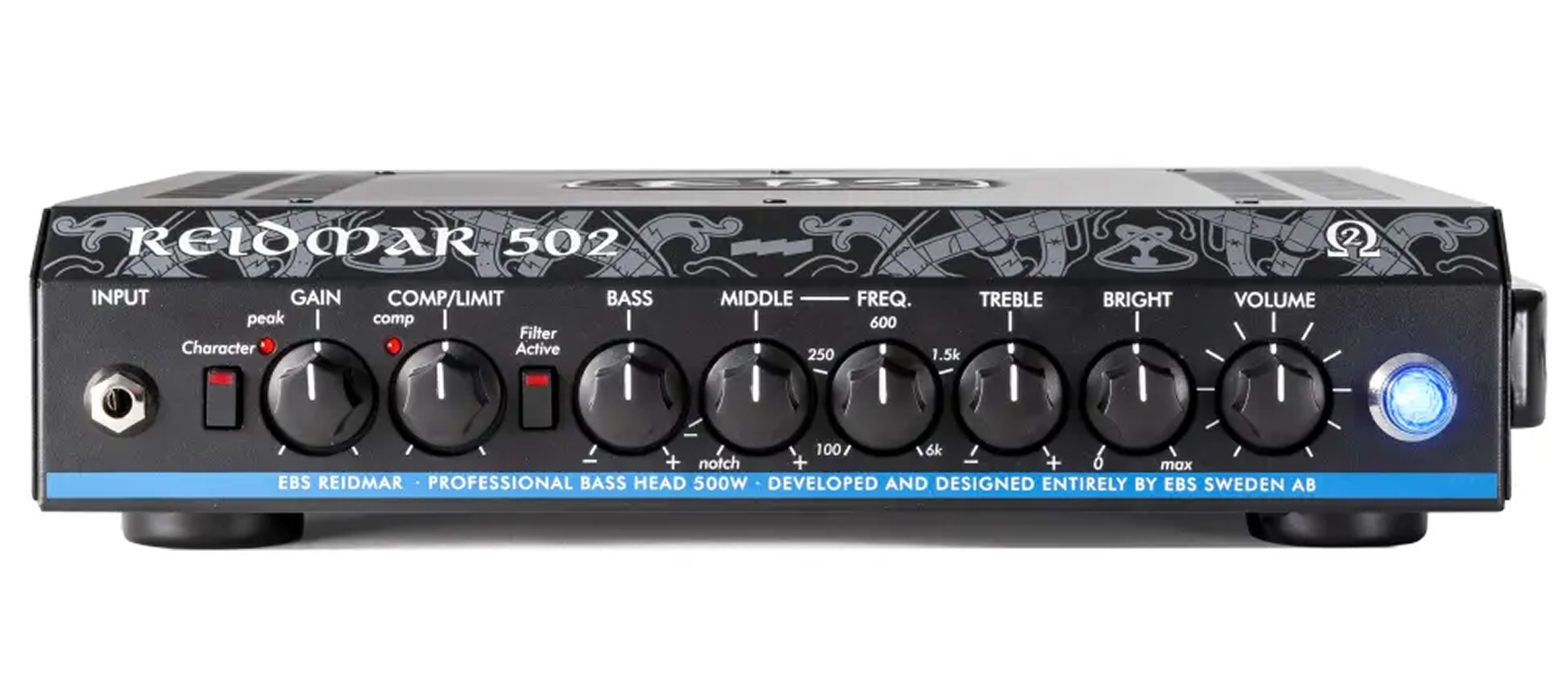

EBS Reidmar 502
EBS Reidmar 502
The EBS Reidmar 502 is a lightweight bass amplifier that breaks new ground with a powerful Class D power module co-developed by EBS to truly handle a 2-ohm load.
The Reidmar 502 delivers 500 W of punch, driving two 4-ohm cabinets with proper 2-ohm stability—rare for lightweight amps. EBS’s soft clip technology ensures powerful, dynamic sound without the excessive compression typically found in compact heads, providing you with tighter lows, clear mids, and crisp highs at any volume.
Its analog preamp features EBS’s adjustable compressor/limiter and a responsive 4-band EQ for precise tonal shaping. Extras include an effects loop, a balanced XLR output with pre- and post-EQ, a ground lift, a line output, and a headphone jack. Pair it with any EBS cabinet(s), from compact lightweight Neoline rigs to full dual 410 stacks, for stunning versatility.
Features
Type
Analog Preamp, 2-ohm D-Class Power Amp
Compressor/Limiter
Built-in Compressor/Limiter
EQ
Extremely Powerful 4-band EQ
Effects Loop
Yes
Character Filter
Yes
Balanced XLR-Out
With Pre/Post EQ switch and Ground Lift
Line and Headphones Out
Yes
Output Power
500 W
Specs
Input Impedance
2 Mohms
Gain Range
-00 – +30 dB
Character Filter
Shelving, High/Low Pass, +7 dB @ 40 Hz, -2 dB @ 800 Hz, +3 dB @ 10 kHz
Tone Controls
Bass Shelving +/-18 dB @ 60 Hz, Mid Bandpass Filter 100 – 6000 Hz +/- 12-15 dB, Treble Shelving +/-18 dB @ 6 kHz, Bright Shelving +15/-0 dB @ 10 kHz
Balanced Output
-10 dBv, Pre/Post EQ, GND Lift
Output Power
250 W RMS / 500 W RMS @ 4 and 2 ohms load respectively
Dimensions (WxDxH)
12.8 x 9.8 x 3.0″ (32.5 x 25 x 7.5 cm)
Weight
3.3 kg (7.3 lbs.)
