EBS ClassicLine Bass Cabinets

General Specs/Models  Reviews Photos Accessories

General



THE EBS CLASSICLINE CABINETS. DEVELOPED FOR MUSICIANS WITH A LOVE OF THE CLASSIC SOUND AND LOOK. THIS VERSATILE RETRO-STYLED GEAR COMES WITH AN UNRIVALLED TONAL CLARITY AND POWER TO BLOW YOUR AUDIENCE AWAY.




Everyone deserves a great bass sound

The ClassicLine cabinets make the great EBS bass sound available to every bass player. The sound character reminds of the EBS ProLine cabinets, but with a warmer and rounder character that adds that vintage touch. The tolex covered cabinets and the cloth front creates a classic look as well.

Full range design

All cabinets are equipped with a 2" tweeter with a fader included in the cabinet for maximum sound control. The 112 uses an on/off switch to control the tweeter. The tweeter adds to the full-range sound.

Which ones are 4 and which ones are 8 ohms?

The ClassicLine 810, 410, and 212 are all 4-ohm cabinets.

The mini-size 112 and the 210 mid-sized cabinets are 8-ohm cabinets.

When you choose cabinet(s), make sure to check the minimum load your amp can handle. Two 4-ohm cabinets together create a 2-ohm load. Two 8-ohm cabinets make a 4-ohm total load, and so on.

Specs/Models

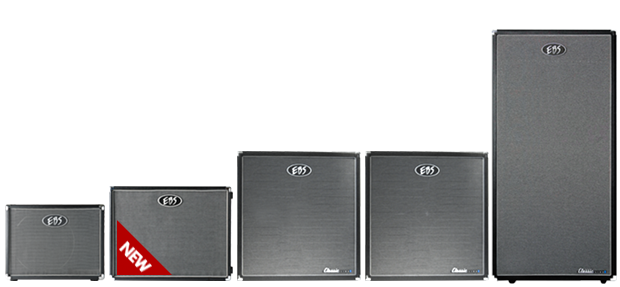

AVAILABLE MODELS / SPECIFICATIONS OF EBS CLASSICLINE CABINETS



EBS ClassicLine 112 - Mini Size

cl112

  • Configuration 1x 12" + 2"
  • Frequency Response 35 - 18k Hz Scroll down for an explanation.*
  • Sensitivity 94 dB
  • Power Rating 250 W RMS
  • Impedance 8 ohms
  • Height 38 cm / 15"
  • Width 49 cm / 19"
  • Depth 34 cm / 13"
  • Weight 17.5 kg / 39 lbs


EBS ClassicLine 210 - Mid Size

cl210

  • Configuration 2x 10" + 2"
  • Frequency Response 55 - 18k Hz*
  • Sensitivity 96 dB
  • Power Rating 250 W RMS
  • Impedance 8 ohms
  • Height 49 cm / 19"
  • Width 64 cm / 25"
  • Depth 34 cm / 13"
  • Weight 22.5 kg / 49.5 lbs

Padded cover included.



EBS ClassicLine 212

cl212

  • Configuration 2x 12" + 2"
  • Frequency Response 35 - 18k Hz*
  • Sensitivity 97 dB
  • Power Rating 500 W RMS
  • Impedance 4 ohms
  • Height 68 cm / 27"
  • Width 64 cm / 25"
  • Depth 41 cm / 16"
  • Weight 30 kg / 66 lbs

Padded cover included.



EBS ClassicLine 410

cl410

  • Configuration 4x 10" + 2"
  • Frequency Response 55 - 18k Hz*
  • Sensitivity 99 dB
  • Power Rating 500 W RMS
  • Impedance 4 ohms
  • Height 68 cm / 27"
  • Width 64 cm / 25"
  • Depth 41 cm / 16"
  • Weight 34 kg / 76 lbs

Padded cover included.



EBS ClassicLine 810

cl810

  • Configuration 8x 10" + 2"
  • Frequency Response 55 - 18k Hz*
  • Sensitivity 102 dB
  • Power Rating 1000 W RMS
  • Impedance 4 ohms
  • Height 125 cm / 49"
  • Width 64 cm / 25"
  • Depth 41 cm / 16"
  • Weight 55 kg / 121 lbs

Wheels, slide rails, and top handles for easy transport and handling. Padded cover included.



* The numbers represent the range of a single speaker used in the specified cabinet model. Note that the total cone area (all speakers in the cabinet), the size and design of the cabinet, the sensitivity, and how the human ear uses information in different frequency ranges to interpret low frequencies, in particular, are all factors that contribute to the overall impression of the sound. In other words, a 210, 410, and 810 cabinet share the same specified Frequency Range but produce very different levels of low-frequency output.

Reviews



Review from FUZZ Magazine, Sweden

"The Classic 810 speaker I´m starting to like 8x10 enclosures more and more. With a cone area this big, the impression is totally different from the sometimes farty midrange character of a 4x10. The fullness and sheer power of the 8x10 overshadow the compressed mids of a 4x10. Since the ten-inch drivers lack the deepest frequencies the low bass seldom gets boomy. The large overall speaker area compensates for this giving plenty of bass. Soundwise, this 8x10 is warmer and softer than the EBS Proline models. The tweeter adds bite when you need it. This can be varied using the knob at the back. If you like old-school sounds the tweeter can be turned down completely. The Classic enclosure is a little wider which makes it more fitting underneath big old tube heads. The weight of the cab is 14 kilos less than the Proline equivalent."

- Lars Arvidsson, FUZZ Magazine, on the EBS ClassicLine 810 cabinet.



Review from Bass Guitar, UK

"The amount of bottom end produced by these cabinets belies their nifty size...we were pleasantly surprised at the volume these speakers can handle"."

- Bass Guitar, UK issue 68, July 2011 on the ClassicLine 112 cabinets.



Said about the EBS ClassicLine cabinets

"Totally versatile and precise, with so much power, topped by a great sleek look."

- John JC Calabrese, Danko Jones

Photos



Johan Blomquist cool EBS rig with Backyard Babies.
Johan Blomquist cool EBS rig with Backyard Babies.



classicline_kse
Mike D'Antonio with Killswitch Engage. Photo: Daniel Falk
classicline_jc
John JC Calabrese - Danko Jones. Photo Peter Orevi.













Accessories



EBS Triple S (SSC) Speakon-Speakon cable

EBS heavy-duty Speakon cables with speaker twist connectors are perfect to connect your cabinet to the amp or to use when linking cabinets together. Length: 1.5 m








Matching rack case

prorackEBS matching rack cases for ProLine and NeoLine speakers are available in 3 and 4U height and lock in with the corners of the cabinet.

Available models:
EBS-3UB 19" rack, 3U height.
EBS-4UB 19" rack, 4U height.


 FEATURES

Cabinet Specifics
Made of multi-laminated
plywood covered with vinyl.

Cloth front grill.

Deep Dish Handles.

Heavy-duty back wheels with top and side handles on 810 model.

Speakers & Connectors
2x Neutrik® SPEAKON connectors for input and link through.

Conventional speakers, selected and optimized for each model.

2" tweeter.

Additional
Optional Matching rack cases
available in 3 & 4U height.

410, 212, 210, and 810 comes
with a padded cover.

Five-year limited warranty.
