EBS UniChorus Studio Edition

"The instant I heard the EBS UniChorus I knew I had found the right one."

- Jeff Berlin, bass legend

General Specs  Demos & Samples  Downloads  Reviews Photos

General



THE EBS UNICHORUS STUDIO EDITION LET YOU CHOOSE BETWEEN LOW NOISE STUDIO QUALITY CHORUS, FLANGE AND PITCH MODULATION EFFECTS.




Analog Processing. The pedal is built with the best analog processing circuitry available. This gives a smoother, warmer and fatter sounding chorus/flange effect, useful both for live and studio performances. The pedal output can run in mono or stereo.



Effect mix level. Under the hood of the UniChorus, there's a mix level control that let you decide how much or little of the effect you'd like to be blended with the original tone. See the manual for details.



Evolution. The UniChorus was first introduced in 1997. From the 2008 edition improvements added 3 dB higher headroom, higher sensitivity (makes it easier to dial-in) and new analog circuitry with higher dynamics and lower noise, as well as true bypass switching technique.



The Studio Edition features an optimized signal path, new design, new signal relay switching technique, protection against over voltage up to 18V and the possibility to power the pedal with anything between 9-12V DC.



Not just for bass players. The UniChorus is suitable for bass as well as keyboard. For guitar, we are now happy to present the EBS RED TWISTER!

Specs

  • Nominal Input Level - 8 dBv

  • Input Impedance 700 kohms

  • Bandwidth +0/-3 dB 20 - 20 kHz

  • Delay Bandwith +0/-3 dB 200 - 8 kHz

  • Delay Level mix min/max -oo - +3 dB

  • Center Delay Time
    Flange 3 ms
    Chorus 5.5 ms
    Pitch Modul. 10 ms

  • Modulation Depth min/max +/- 50% of nominal delay time

  • LFO Range min/max 0.15 - 7.5 Hz

  • Bypass True Bypass

  • Dimensions (L x W x H) 2.8 x 4.5 x 1.4” (70 x 115 x 35 mm)

  • Weight 400g (0.88 lb.)

  • Power Requirements 9-12 V DC Regulated, 35 mA max


    * EBS Recommend the use of the EBS AD-9+ DC adapter.
    The adapter can supply up to twenty pedals at the same time.

 Demos & Samples

Downloads

downloadmanual

Reviews

REVIEW from Bonedo (in German)

by Oliver Poschmann

"Das EBS UniChorus Studio Edition Pedal kann auf voller Linie punkten: Die druckvolle, seidigen Chorus-Sounds, optional umschaltbar auf Pitch Modulation und Flanger, überzeugen mich voll und sind über jeden Zweifel erhaben." Verdict: 5 out of 5

Read the whole review (external link) >>




Photos

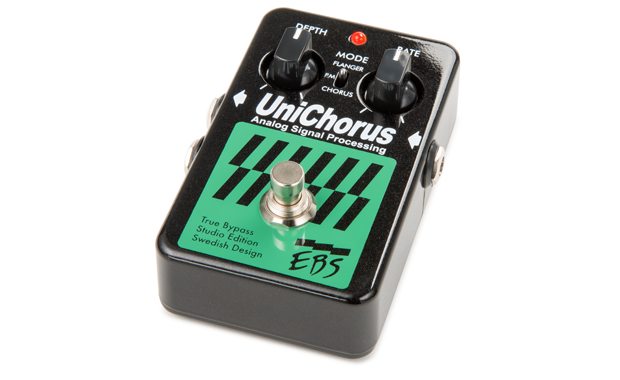

unichorus_front



 FEATURES

Preserve the low range

Suitable for live and studio use

Analog Signal Processing

Flanger, Pitch Mod and Chorus Modes

Controls for Depth and Rate

Stereo output

True Bypass Signal Relay Switching

Protected against over voltage up to 18V

Powered by 9 to 12V DC

Optional (not included): EBS AD-9 Power Supply
