EBS ProLine Bass Cabinets

General Specs/Models  Reviews Photos Accessories How to order

General

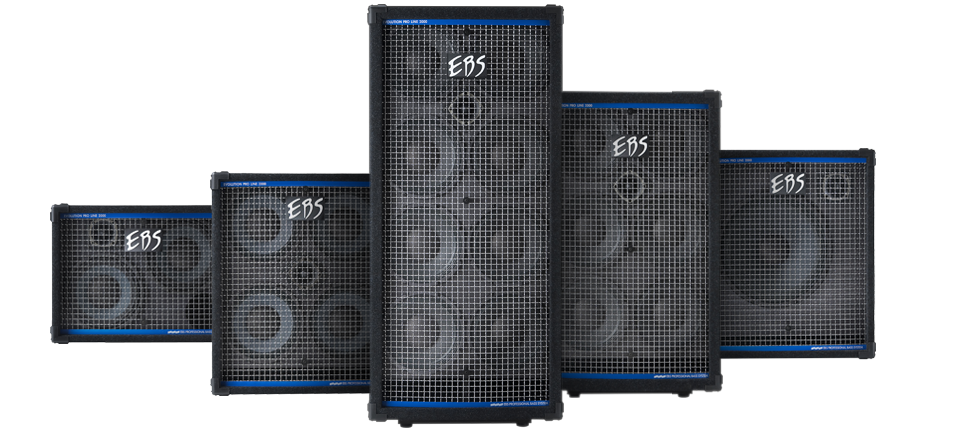

THE EBS PROLINE CABINETS ARE BUILT WITH THE FINEST QUALITY 13-PLY BIRCH*. THE PROLINE SPEAKER CABINETS BEST REPRESENTS THE FAMOUS "EBS SOUND".




A natural sound developed through evolution

Transparency, balance, and natural warmth characterize the EBS ProLine speaker sound. Five different cabinet models allow optimal combinations, making it easy to create your own ‘signature’ sound.

The ProLine cabinets offer a great punch in the midrange that hits a sweet spot when playing slap bass or other styles that crave a great midrange response. The evolution of the ProLine can be traced back to the first cabinets ever made by EBS Professional Bass Equipment. Developed and fine-tuned along the way to meet the demands of today's bass players.

Are you using Impulse Responses?

Using devices with Impulse Responses to simulate various speaker cabinets is increasingly popular. But to truly harness the potential of this technology with your bass rig, you need speakers that offer both transparency and impressive power handling.

To unlock the full potential of your IR-equipped device, pair it with an EBS speaker cabinet that embodies transparency and delivers a full-range sound. They offer the optimal conditions for recreating the entire palette of speaker tones you may get from using IR, providing the authenticity and richness in detail that you crave.

Roadworthy design

The ProLine cabinets are built for heavy touring with sturdy construction and roadworthy protection features such as the woven steel grill, resistant felt, and heavy-duty wheels on the 610 and 810 models.

A Beginner's Guide to Select Speaker Cabinets

Don't be insecure about picking the right cabinet to match your amplifier. We have put together a guide to help you make an informed decision.
Click here to learn more.

*Cabinets built since 2016, or prior to 2014, are all Birch. Cabinets built between 2014 and early 2016 may be built of SPRUCE plywood with a BIRCH baffle, just like the NeoLine cabinets.

Specs/Models



AVAILABLE MODELS / SPECIFICATIONS OF EBS PROLINE CABINETS



EBS ProLine 210

pl210

  • Configuration 2x 10" + 2"
  • Frequency Response 70 - 18k Hz scroll down for an explanation.*
  • Sensitivity 99 dB
  • Power Rating 400 W RMS
  • Impedance 4 ohms
  • Volume 63 liters
  • Height 39 cm / 15"
  • Width 58 cm / 23"
  • Depth 44 cm / 17"
  • Weight 22.3 kg / 49.2 lbs

EBS ProLine 410

pl410

  • Configuration 4x 10" + 2"
  • Frequency Response 70 - 18k Hz*
  • Sensitivity 102 dB
  • Power Rating 800 W RMS
  • Impedance 4 ohms
  • Volume 116 liters
  • Height 69 cm / 27"
  • Width 58 cm / 23"
  • Depth 44 cm / 17"
  • Weight 36.1 kg / 77.4 lbs

EBS ProLine 115

pl115

  • Configuration 1x 15" + 2"
  • Frequency Response 35 - 18.000 Hz*
  • Sensitivity 100 dB
  • Power Rating 400 W RMS
  • Impedance 4 ohms
  • Volume 116 liters
  • Height 69 cm / 27"
  • Width 58 cm / 23"
  • Depth 44 cm / 17"
  • Weight 27.1 kg / 59.7 lbs

EBS ProLine 610

pl610

  • Configuration 6x 10" + 2"
  • Frequency Response 70 - 18k Hz*
  • Sensitivity 103 dB
  • Power Rating 900 W RMS
  • Impedance 3 ohms
  • Volume 160 liters
  • Height 95 cm / 37"
  • Width 58 cm / 23"
  • Depth 44 cm / 17"
  • Weight 52 kg / 114.6 lbs

tophandles

Heavy Duty Wheels and Top Handles for easy transport

EBS ProLine 810

pl810

  • Configuration 8x 10" + 2"
  • Frequency Response 70 - 18k Hz*
  • Sensitivity 105 dB
  • Power Rating 1200 W RMS
  • Impedance 4 ohms
  • Volume 195 liters
  • Height 124 cm / 49"
  • Width 58 cm / 23"
  • Depth 44 cm / 17"
  • Weight 60 kg / 132.3 lbs

tophandles

Heavy Duty Wheels and Top Handles for easy transport



* The numbers represent the range of a single speaker used in the specified cabinet model. Note that the total cone area (all speakers in the cabinet), the size and design of the cabinet, the sensitivity, and how the human ear uses information in different frequency ranges to interpret low frequencies, in particular, are all factors that contribute to the overall impression of the sound. In other words, a 210, 410, and 810 cabinet share the same specified Frequency Range but produce very different levels of low-frequency output.

Reviews



Said about the EBS ProLine cabinets

"The bottom end is round and punchy without being muddy. The mids and highs are just right, not to bright (so you feel like your playing guitar) and not to dull ( so you can’t make out what your playing). You get a great bass sound from them."

- Warren McRae, from the Tina Turner 2009 World Tour


"I can get a lot of great mids out of the EBS gear. It also has this kind of snap, so when I dig in really hard on the bass, I almost get a slap sound and the EBS is able to articulate that properly."

- Tal Wilkenfeld on her rig, EBS HD350/360 with ProLine 410 cabinets

Photos



artist_tal
Tal Wilkenfeld at Bass Player Live.
proline_atthegates
Jonas Björler with At The Gates



Accessories



EBS Triple S (SSC) Speakon-Speakon cable

EBS heavy-duty Speakon cables with speaker twist connectors are perfect to connect your cabinet to the amp or to use when linking cabinets together. Length: 1.5 m








Matching rack case

prorackEBS matching rack cases for ProLine and NeoLine speakers are available in 3 and 4U height and lock in with the corners of the cabinet.

Available models:
EBS-3UB 19" rack, 3U height.
EBS-4UB 19" rack, 4U height.


How to order



EBS amplifiers are a perfect pairing with EBS speaker cabinets. These cabinets are specifically designed to achieve the ultimate bass tone. Unfortunately, the evolving music industry has made it more challenging for customers to discover high-end bass equipment online and in local stores. To address this, we now offer EBS ProLine and NeoLine cabinets on the EBS webshop (available within selected EU countries). If that is not an option for you, you can also request them through the EBS dealer in your area.

How to order and get personal assistance finding the right cabinet:

  • Click here to place your order at the EBS webshop.
  • We are delighted to announce that some of Europe's largest online dealers now also carry a curated selection of EBS cabinets.
  • For any country with an EBS distributor, you can request to order your preferred EBS cabinet, even if it's not stocked at your local store.
  • We highly encourage you to continue requesting the products you desire at your local store and online, as this greatly aids in improving availability over time.
  • Please feel free to contact us directly for personalized assistance in finding the perfect match for your amplifier or if you are having difficulty locating what you require.





 FEATURES

Cabinet Specifics
13-ply Birch plywood covered
with resistant felt.

Protective woven steel grill
with a chromed look.

Deep Dish Handles.

Heavy-duty back wheels with top and side handles on 810 & 610 models.

Speakers & Connectors
2x Neutrik® SPEAKON connectors for input and link through.

Conventional type speakers, selected,
developed & optimized for each model.

Adjustable 2" tweeter.

Additional
Optional Matching rack cases available in 3 & 4U height.

Five-year limited warranty.
