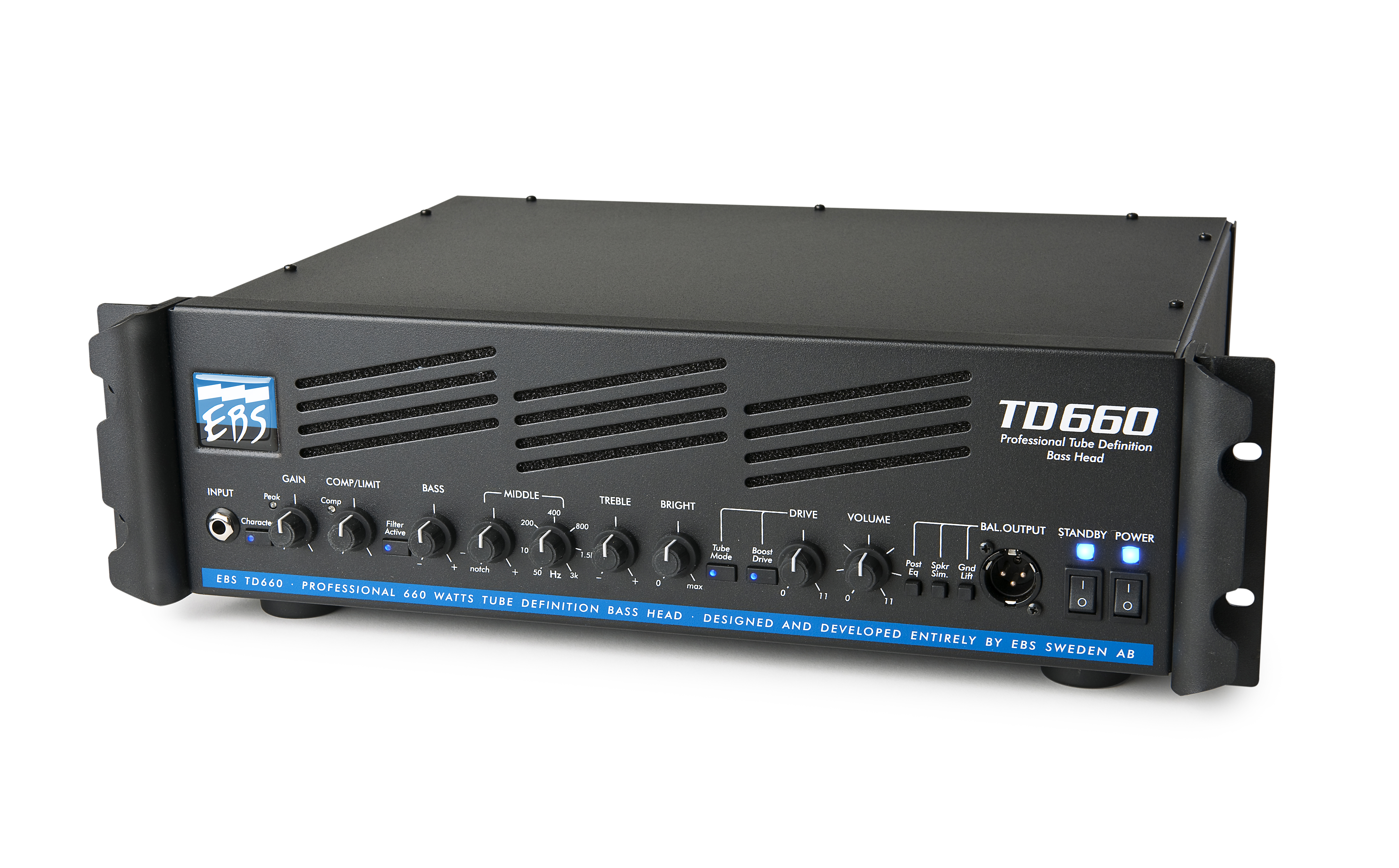

EBS TD660

General Specs  Demos & Samples  Downloads  Reviews Photos

General



THE EBS TD660 TUBE/SOLID STATE HYBRID BASS AMP IS VERY VERSATILE AND SUITED FOR TO ANY LARGE VENUE, EMBRACING ALL STYLES OF MUSIC OR PLAYING. IT IS ONE OF THE MOST RELIABLE BASS AMPS TO BRING ON TOUR!






The Working horse of the pros. EBS Tube Definition (TD) heads have served an uncountable number of major artists - in a wide range of genres over the years. It is the most common EBS amp featured on the World's major backline rental companies. It's simply known for it's powerful sound and great controls, that lets you dial in your sound easily.

Natural and true. These heads also offer incredible tone; natural and true to the character of the instrument and personality of the musician using it.

660 W RMS. With 660 W RMS pure output power it will always rock the house. It is a Tube/Solid State hybrid bass amp. The tube in the Drive section warms up the sound and adds a nice natural compression and character of a tube amp.

Full control. The front panel feature a Character filter, which is a quick fix to a mid-scooped overall tone. An input Gain control sets the input level from your instrument. The Filter Active button activates/bypasses the EQ filters. A shelving Bass filter for the lows. An advanced Middle filter lets you pick the frequency range you’d like to adjust with one control and cut or boost in that range with the other.

The clever “Notch” function is active when the Cut/Boost control is set to “Notch”. You can then identify and scoop out frequencies causing unwanted feedback with the Frequency control.

A  shelving Treble filter and the unique Bright filter controls the highs.

The Drive on the TD heads can be set to Tube Mode (to connect the tube) and Boost Mode. Boost Mode boosts the whole frequency range when turning up the Drive.

Finally the balanced XLR output sends a perfectly balanced line signal to front of house or a studio mixing console without the need of an external line box. Choose between post/pre EQ, with our without Speaker Simulation and Ground lift.

Input jack Phantom Power option. If used with a stereo cable, the input jack offers 9V DC Phantom Power output, that can be used to power a single 9V DC EBS pedal or an active bass.

Back panel. On the back you’ll find the Effects Loop, featuring a Mix level control that lets you blend in the effects with your sound from zero to a hundred percent. Effect Return also offers the same Phantom Power function that you find on the Input jack at the front. A Tuner output to connect a tuner rack unit easily. A  Line out, in case you need the power from another amp to drive a second pair of cabinets. The Filter Remote Inputs to connect the RM-4 footswitch that lets you switch on and off Character, Filter Bypass, Drive and Mute from front of stage.

Specs

EBS TD660

  • Input Impedance 1 Mohms
  • Frequency Response 35 - 20.000 Hz
  • Maximum Compression Ratio (Compressor) 3:1
  • Tone Controls
    Bass +/-15 dB @ 100 Hz
    Middle +/- 12dB @ 50 - 3.000 Hz, Q=0.5
    Treble +/- 15 dB @ 6 kHz
    Bright -0/+12 dB @ 10 kHz
  • Drive Gain Range 0 - 34 dB
  • Drive Type Solid State or Tube (ECC 83)
  • Speaker impedance 2 - 8 ohms
  • Continuous Output Power
    Dynamic Output Power 660 W RMS @ 2 ohms,
    Continuous Output Power 540 W RMS
  • Dimensions (W x D x H) 19" x 14" x 3U (48cm x 36cm x 13cm)
  • Weight 12 kg / 27 lbs

 Demos & Samples





Downloads

downloadmanual

Reviews

REVIEW from MM magazine, Sweden

"The sound is
first-class even at loud volumes and the combined filter
section and Drive-function makes it easy to dial in
sounds ranging from crystal clear hi-tech to a sweaty
tube amp in heat"

Read the complete review (PDF) >>




REVIEW from FUZZ Magazine, Sweden

"The first impression is that of an open-sounding,
clear, transparent sound quality."

Read the complete review (PDF) >>

Photos





TD660_front

TD660_back

 FEATURES

Type: Analog Preamp,

D-Class Power Amp

Built-in adjustable Compressor/Limiter

Extremely Powerful 4-band EQ

Drive Control

Effects loop

Character filter.

Balanced XLR-Out with optional
speaker simulator and ground lift.

Line and Headphones Out

Remote Output for connecting EBS RM-4 footswitch to control Character Filter, Drive, EQ bypass and Mute funtction

Output Power: 750 W @ 4 Ohms

120/230 V Switchable
