EBS Red Twister Guitar Chorus

“The Red Twister is a high quality, road-worthy pedal. It's a great addition to any pedalboard. The variety of flange and chorus effects is perfect for my psychedelic rock sound."

- Vinny Martell,
Vanilla Fudge

General Specs  Demos & Samples  Downloads  Reviews Photos

General



THE EBS RED TWISTER GUITAR EDITION IS AN ANALOG STUDIO QUALITY CHORUS, FLANGE AND PITCH MODULATION EFFECTS FOR GUITAR. THE PERFECT COMBINATION OF USER FRIENDLINESS AND SONIC AWESOMENESS!


  Analog Processing. The pedal is built with the best analog processing circuitry available. This gives a smooth, warm and fat sounding chorus/flange effect, useful both for live and studio performances. The Red Twister is built on the legacy of the EBS UniChorus Studio Edition bass effect, but with adjustments of delay times and frequency range to match the guitar perfectly. The pedal output can run in mono or stereo.   Effect mix level. Under the hood of the Red Twister, there's a mix level control that let you decide how much or little of the effect you'd like to be blended with the original tone. See the manual for details.
To give you the most comprehensive way possible today to try these pedals online, check out our new player below from TonePedia.com, using authentic high definition recorded samples of the EBS Guitar Edition pedals, with the instrument and amp shown below.
Instructions:
  1. Click on the pedal you want to try
  2. Change the parameters below the pedal field to change the settings on the pedal you are listening to (the controls represent the controls on the selected pedal).
  3. In the same way, change the pickup setting on the guitar below the guitar field.
  4. For variation in style, choose a sample in the drop-down menu below the pedal control field.
  5. Some of the variations adds the possibility to combine the selected effect with distortion/overdrive. On these samples, a button to engage distortion appears in the pedal control field.
Do you want to leave feedback on your experience with this tool? Click here   About the Red Label Pedals. The Red Twister is one of the three first launched pedals in EBS new Red Label Pedals for guitar, along with the EBS DynaVerb Guitar Edition and MultiComp Guitar Edition. They all comes with the heritage from EBS famed Black Label Pedals for bass, that have been used by world-famous guitarists for years. With the Red Label Pedals, all the details has been adjusted for optimal performance with guitar, with the input from some of the most busy Swedish session guitarists and the staff from the famous TGT11.se pedal specialists store in Stockholm, Sweden.

Specs

  • Nominal Input Level - 8 dBv

  • Input Impedance 700 kohms

  • Bandwidth +0/-3 dB 20 - 20 kHz

  • Delay Bandwith +0/-3 dB 200 - 8 kHz

  • Delay Level mix min/max -oo - +3 dB

  • Center Delay Time
    Flange 1.5 ms
    Chorus 2.8 ms
    Pitch Modul. 4.1 ms

  • Modulation Depth min/max +/- 50% of nominal delay time

  • LFO Range min/max 0.15 - 7.5 Hz

  • Bypass True Bypass

  • Dimensions (L x W x H) 2.8 x 4.5 x 1.4” (70 x 115 x 35 mm)

  • Weight 400g (0.88 lb.)

  • Power Requirements 9-12 V DC Regulated, 35 mA max*


    * EBS Recommend the use of the EBS AD-9+ DC adapter.
    The adapter can supply up to twenty pedals at the same time.

 Demos & Samples



Timo Somers from Delain/Vengeance showing the EBS Red Label Pedals in this video:

Downloads

downloadmanual

Reviews

GUITARIST MAGAZINE, UK, September Issue, 2015

“Classy flanging and chorus in one pedal, nicely implemented, 8/10”. Full review in the magazine.



REVIEW iGuitar Magazine, UK, issue 36, 2015

“It’s great that this pedal (Red Twister GE) offers a Flange setting too, making it much more than just your average Chorus stomp box…The quality of sound and tone is excellent, making it a musical rather than just a ‘crazy sounds’ pedal”.


Watch the video here (RedTwister part start at 6:44):



REVIEW from GUITAR & BASS MAGAZINE, UK

“(The Red Twister’s) Soft mode is absolutely lovely, with plenty of chorus-y shimmer, which is made all the more tuneful by the pedal’s intrinsic analogue warmth.”


The whole review available in Guitar & Bass Magazine, UK, October 2015 issue






Photos

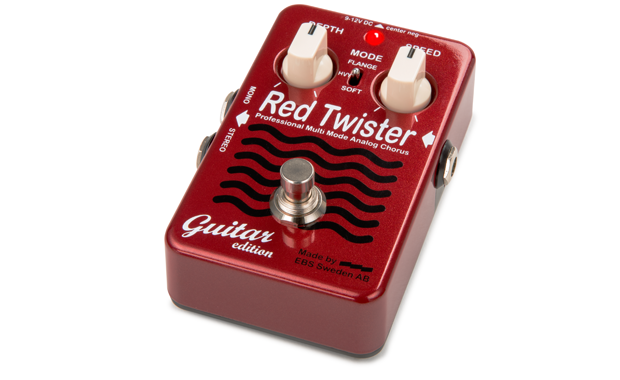

redtwister_front



 FEATURES

Optimized for use with guitar.

Suitable for live and studio use

Analog Signal Processing

Flanger, Pitch Mod and Chorus Modes

Controls for Depth and Speed

Stereo output

True Bypass Signal Relay Switching

Protected against over voltage up to 18V

Powered by 9 to 12V DC

Optional (not included):
EBS AD-9+ Power Supply
