EBS ProLine Bass Cabinets

General Specs/Models  Reviews Photos Accessories

General

THE EBS PROLINE CABINETS. BUILT WITH THE FINEST QUALITY 13-PLY BIRCH*, THESE SPEAKER CABINETS RADIATE THE NATURAL TONES CREATED BY THE TECHNOLOGY THAT PRECEDES THEM.




Natural sound developed through evolution. Transparency, balance and natural warmth characterize the EBS ProLine speaker sound. Five different cabinet models allow optimal combinations, making it easy to create your own ‘signature’ sound.

Roadworthy. The ProLine cabinets are built for heavy touring with sturdy construction and roadworthy protection features such as the woven steel grill, resistant felt and heavy-duty wheels on the 610 and 810 models.



*Cabinets built in 2016 are all Birch. Cabinets built between 2014-early 2016 may be built of SPRUCE plywood with a BIRCH baffle, just like the NeoLine cabinets.

Specs/Models

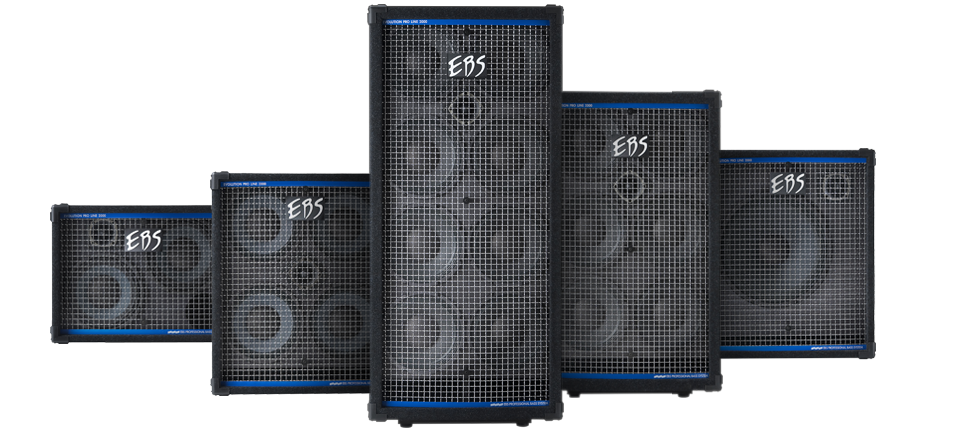

AVAILABLE MODELS / SPECIFICATIONS OF EBS PROLINE CABINETS



EBS ProLine 210pl210

  • Configuration 2x 10" + 2"
  • Frequency Response 70 - 18k Hz
  • Sensitivity 99 dB
  • Power Rating 400 W RMS
  • Impedance 4 ohms
  • Volume 63 liters
  • Height 39 cm / 15"
  • Width 58 cm / 23"
  • Depth 44 cm / 17"
  • Weight 22.3 kg / 49.2 lbs

EBS ProLine 410pl410

  • Configuration 4x 10" + 2"
  • Frequency Response 70 - 18k Hz
  • Sensitivity 102 dB
  • Power Rating 800 W RMS
  • Impedance 4 ohms
  • Volume 116 liters
  • Height 69 cm / 27"
  • Width 58 cm / 23"
  • Depth 44 cm / 17"
  • Weight 36.1 kg / 77.4 lbs

EBS ProLine 115pl115

  • Configuration 1x 15" + 2"
  • Frequency Response 35 - 3.000 Hz
  • Sensitivity 100 dB
  • Power Rating 400 W RMS
  • Impedance 4 ohms
  • Volume 116 liters
  • Height 69 cm / 27"
  • Width 58 cm / 23"
  • Depth 44 cm / 17"
  • Weight 27.1 kg / 59.7 lbs

EBS ProLine 610pl610

  • Configuration 6x 10" + 2"
  • Frequency Response 70 - 18k Hz
  • Sensitivity 103 dB
  • Power Rating 900 W RMS
  • Impedance 3 ohms
  • Volume 160 liters
  • Height 95 cm / 37"
  • Width 58 cm / 23"
  • Depth 44 cm / 17"
  • Weight 52 kg / 114.6 lbs

tophandles

Heavy Duty Wheels and Top Handles for easy transport

EBS ProLine 810pl810

  • Configuration 8x 10" + 2"
  • Frequency Response 70 - 18k Hz
  • Sensitivity 105 dB
  • Power Rating 1200 W RMS
  • Impedance 4 ohms
  • Volume 195 liters
  • Height 124 cm / 49"
  • Width 58 cm / 23"
  • Depth 44 cm / 17"
  • Weight 60 kg / 132.3 lbs

tophandles

Heavy Duty Wheels and Top Handles for easy transport

Reviews

Said about the EBS ProLine cabinets

”The bottom end is round and punchy without being muddy. The mids and highs are just right, not to bright (so you feel like your playing guitar) and not to dull ( so you can’t make out what your playing). You get a great bass sound from them.”

- Warren McRae, from the Tina Turner 2009 World Tour


"I can get a lot of great mids out of the EBS gear. It also has this kind of snap, so when I dig in really hard on the bass, I almost get a slap sound and the EBS is able to articulate that properly."

- Tal Wilkenfeld on her rig, EBS HD350/360 with ProLine 410 cabinets

Photos

artist_tal
Tal Wilkenfeld at Bass Player Live.
proline_atthegates
Jonas Björler with At The Gates



Accessories

speakonEBS Triple S Speakon-Speakon cable

EBS heavy duty Neutrik Speakon cables are perfect to connect your amp to an EBS cabinet, or to use when linking cabinets together. Length: 1.5 m








Matching rack case

prorackEBS matching rack cases for ProLine and NeoLine speakers are available in 3 and 4U height and lock in with the corners of the cabinet.

Available models:
EBS-3UB 19" rack, 3U height.
EBS-4UB 19" rack, 4U height.


 FEATURES

Cabinet Specifics
13-ply Birch plywood covered
with resistant felt.

Protective woven steel grill
with chromed look.

Deep Dish Handles.

Heavy-duty back wheels with
top and side handles on 810 & 610 models.

Speakers & Connectors
2x Neutrik® SPEAKON connectors
(& 2x 1/4" connectors) for input and link through.

Conventional type speakers selected,
developed & optimized for each model.

Adjustable 2” tweeter.

Additional
Optional Matching rack cases
available in 3 & 4U height.

Five year limited warranty.
