General

THE EBS NEOLINE CABINETS ARE CAPABLE OF HANDLING THE MOST DEMANDING LEVELS OF SOUND. THEY ARE FOR BASS PLAYERS LOOKING FOR EXTRAORDINARY SONIC QUALITIES AND POWER.




Light-weight and powerful. Every EBS NeoLine speaker cabinet is made from truly tonal, light-weight spruce plywood, with a baffle made of birch. Equipped with 3rd generation Neodymium speakers, these cabinets have superior, dynamic range and an unbeatable power handling throughout the entire frequency spectrum, to satisfy even the most demanding bass player.

Roadworthy. The NeoLine cabinets are built for heavy touring with sturdy construction and roadworthy protection features such as the woven steel grill, resistant felt and heavy-duty wheels on the 810 model.

Mini size. The amazingly compact NEO-112 cabinet is the lightest in the entire range of EBS enclosures. Offering super versatility, this cabinet has a spring lever fitted to enable the ’tilt’ function, making it perfect for both stage and studio work. Stack them in pairs for a nice and loud little rig driven by any EBS amp of choice!

feather

Specs/Models

AVAILABLE MODELS / SPECIFICATIONS OF EBS NEOLINE CABINETS



EBS NeoLine 112 - Mini Sizenl112

  • Configuration 1x 12" + 2"
  • Frequency Response 50 - 18k Hz
  • Sensitivity 100 dB
  • Power Rating 300 W RMS
  • Impedance 8 ohms
  • Volume 35 liters
  • Height 37 cm / 15"
  • Width 49 cm / 19"
  • Depth 34 cm / 13"
  • Weight 12 kg / 27 lbs


EBS NeoLine 210nl210

  • Configuration 2x 10" + 2"
  • Frequency Response 50 - 18k Hz
  • Sensitivity 102 dB
  • Power Rating 500 W RMS
  • Impedance 4 ohms
  • Volume 63 liters
  • Height 39 cm / 15"
  • Width 58 cm / 23"
  • Depth 44 cm / 17"
  • Weight 19 kg / 42 lbs


EBS NeoLine 212nl212

  • Configuration 2x 12" + 2"
  • Frequency Response 40 - 18k Hz
  • Sensitivity 103 dB
  • Power Rating 600 W RMS
  • Impedance 4 ohms
  • Volume 103 liters
  • Height 61 cm / 24"
  • Width 58 cm / 23"
  • Depth 44 cm / 17"
  • Weight 21.3 kg / 46.9 lbs


EBS NeoLine 115nl115

  • Configuration 1x 15" + 2"
  • Frequency Response 35 - 18.000 Hz
  • Sensitivity 100 dB
  • Power Rating 300 W RMS
  • Impedance 4 ohms
  • Volume 103 liters
  • Height 61 cm / 24"
  • Width 58 cm / 23"
  • Depth 44 cm / 17"
  • Weight 20 kg / 44 lbs



EBS NeoLine 410nl410

  • Configuration 4x 10" + 2"
  • Frequency Response 50 - 18k Hz
  • Sensitivity 105 dB
  • Power Rating 1000 W RMS
  • Impedance 4 ohms
  • Volume 116 liters
  • Height 69 cm / 27"
  • Width 58 cm / 23"
  • Depth 44 cm / 17"
  • Weight 25.2 kg / 55.5 lbs



EBS NeoLine 810nl810

  • Configuration 8x 10" + 2"
  • Frequency Response 50 - 18k Hz
  • Sensitivity 108 dB
  • Power Rating 2000 W RMS
  • Impedance 4 ohms
  • Volume 195 liters
  • Height 124 cm / 49"
  • Width 58 cm / 23"
  • Depth 44 cm / 17"
  • Weight 47.6 kg / 105 lbs

tophandles

Heavy Duty Wheels and Top Handles for easy transport

Reviews

Review from Bass Guitar Magazine,UK

"There’s a distinct quality you get when playing through this rig, almost as if you’re listening to your bass through powerful studio monitors after an experienced engineer has added just the right EQ." - 5 out of 5

- Kevin Sanders, Bass Guitar Magazine, on the EBS Fafner II with NeoLine 410 cabinet.

Read the complete review (PDF) >>


 Said about the EBS NeoLine cabinets

”I love EBS cabinets and the Fafner heads. I compared them to a different brand a few years ago that I swore to never leave, but EBS was better - way better, so I made the switch and haven't looked back since.”

- Peter Iwers, In Flames


"The EBS NeoLine cabinets are loud and warm. They look good and project the sound really well on big stages."

- Bjorn Englen, Dio Disciples/Soul Sign

Photos

neoline_bjorn
Bjorn Englen - Dio Disciples
neoline_colin
Colin Edwin - Porcupine Tree
neoline_inflames

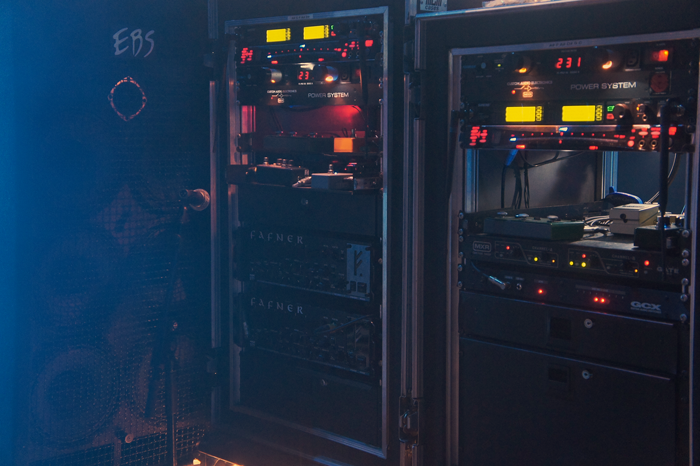

Peter Iwers rig - In Flames



Accessories

speakonEBS Triple S Speakon-Speakon cable

EBS heavy duty Neutrik Speakon cables are perfect to connect your amp to an EBS cabinet, or to use when linking cabinets together. Length: 1.5 m








Matching rack case

prorackEBS matching rack cases for ProLine and NeoLine speakers are available in 3 and 4U height and lock in with the corners of the cabinet.

Available models:
EBS-3UB 19" rack, 3U height.
EBS-4UB 19" rack, 4U height.


 FEATURES

Cabinet Specifics
13-ply Birch (baffle) & Lightweight Spruce
(cabinet) plywood covered with resistant felt.

Protective woven steel grill, black laquered.

Deep Dish Handles.

Heavy-duty back wheels with top
and side handles on 810 model.

Speakers & Connectors
2x Neutrik® SPEAKON connectors
(& 2x 1/4" connectors) for input and link through.

Light-weight Neodymium speakers
selected & optimized for each model.

Adjustable 2” tweeter.

Additional
Optional Matching rack cases
available in 3 & 4U height.

Five year limited warranty.
